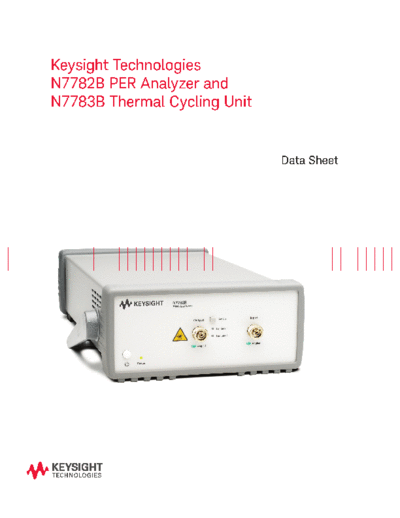

Image preview - the first page of the document



>> Download 5989-8111EN N7782B PER Analyzer and N7783B Thermal Cycling Unit - Data Sheet c20140506 [6] documenatation <<

Text preview - extract from the document

Keysight Technologies
N7782B PER Analyzer and
N7783B Thermal Cycling Unit


                              Data Sheet
Introduction

     Keysight Technologies N7782B Series of polarization extinction ratio (PER) Analyzers has been
     designed for high speed and highly accurate testing of PER in PM fibers. The polarimetric
     measurement principle guarantees reliable measurements of PER values of up to 50 dB.

     The real time measurement capability in combination with automation interfaces makes this unit
     ideally suited for integration in manufacturing systems, for example pig-tailing stations for laser
     diodes and planar wave guide components. Analog interfaces are provided for integration of the
     system in control loop applications.


     Key Benefits
