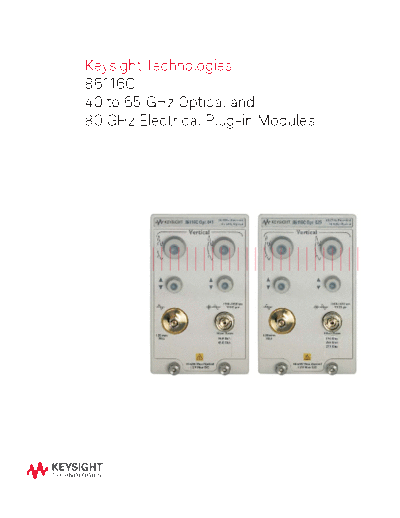

Image preview - the first page of the document



>> Download 5989-8359EN 86116C 40 to 65 GHz Optical and 80 GHz Electrical Plug-in Modules - Brochure c20140829 [6] documenatation <<

Text preview - extract from the document

Keysight Technologies
86116C
40 to 65 GHz Optical and
80 GHz Electrical Plug-in Modules
Enabling the design                      86116C
of next generation
high-speed
                                         Cutting edge component and sub-                                  a fast full-width, half-max (FWHM) of
communication                            system designs require accurate                                  less than 7.4 ps (86116C-041). User
components and                           characterization of very high-speed                              selectable bandwidth settings can
                                         signals. When viewing waveforms                                  reduce noise when observing signals.
systems                                  in the 10 to 100 Gb/s range, three                               The electrical channel features over
                                         requirements are critical in an oscil-                           93 GHz bandwidth. This yields a 3.9 ps
The widest optical and electrical        loscope: a well-designed frequency                               system risetime. Just as important
bandwidths with a well-designed          response, a wide bandwidth, and                                  as bandwidth, the channel has a
frequency response for precision         extremely low internal jitter. The                               well-controlled frequency response to
waveforms allow you to research,         Keysight Technologies, Inc. 86116C                               minimize waveform distortion. User
design, verify and troubleshoot the      optical and electrical modules                                   selectable bandwidth settings can
physical layer of today's electronic     represent some of the fastest                                    be used for reduced instrumentation
frontiers: STM-256/OC-768 telecom-       solutions available for measuring                                noise.
munication, 100 Gbps Ethernet            high-speed communication signals.
(4x 25G variants), or 16X Fibre          Characteristically with 45 or 70 GHz                             The 86116C integrates with the
Channel (single-mode variants).          optical and 93 GHz electrical                                    86100C Infiniium DCA-J wideband
                                         bandwidth, the 86116C when paired                                oscilloscope mainframe. The 86100C
                                         with the 86107A precision timebase                               can hold up to two modules for a total
    86116C-041 Optimized for             module becomes the ideal solution for                            of four measurement channels.
    high-speed telecom signals           ultra high-speed waveform analysis.                              In addition, the 86100C has a com-
