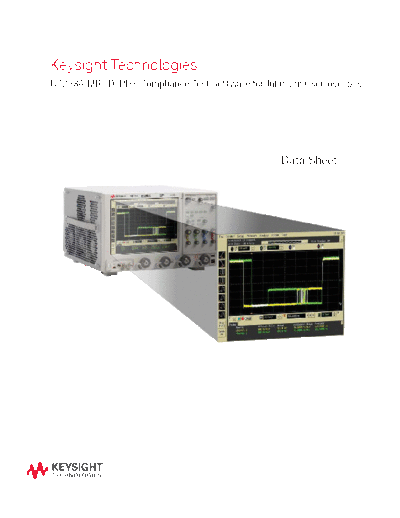

Image preview - the first page of the document
5989-9337EN U7238A MIPI D-PHY Compliance Test Software for Infiniium Oscilloscopes - Application Note c20141022 [8]


>> Download 5989-9337EN U7238A MIPI D-PHY Compliance Test Software for Infiniium Oscilloscopes - Application Note c20141022 [8] documenatation <<

Text preview - extract from the document
Keysight Technologies
U7238A MIPI D-PHY Compliance Test Software for Ininiium Oscilloscopes




                                                   Data Sheet
02 | Keysight | U7238A MIPI D-PHY Compliance Test Software for Ininiium Oscilloscopes - Data Sheet



Validate and debug your embedded D-PHY data links quickly and easily
The Keysight Technologies, Inc. U7238A MIPI D-PHY compliance test software for Ininiium oscilloscopes gives you a fast, easy way to
validate and debug your embedded D-PHY data links. The D-PHY electrical test software allows you to automatically execute D-PHY
electrical checklist tests for CSI and DSI architectures, and displays the results in a lexible report format. In addition to the
measurement data, the report provides margin analysis that shows how closely your product passed or failed each test.

The U7238A MIPI D-PHY compliance test software performs a wide range of tests required to meet the physical layer requirements per
Section 8 of the MIPI Alliance Speciication for D-PHY v1.00.00. The U7238A MIPI D-PHY compliance test software helps you execute
the most dificult physical layer tests for transmitters (TX tests only) that can be measured with a 4-GHz or higher-bandwidth real-time
oscilloscope. Although there are not currently any requirements for physical layer compliance veriication, it is highly recommended
that every MIPI D-PHY link be tested against the limits of the physical layer speciication to ensure that it is compliant to the
speciication and to minimize concerns with protocol level interoperability.



Features                                                                               Easy test deinition
The U7238A MIPI D-PHY compliance test software offers several                          The U7238A MIPI D-PHY compliance test software extends the
features to simplify design validation:                                                ease-of-use advantages of Keysight's Ininiium oscilloscopes to
                                                                                       testing D-PHY designs. The Keysight automated test
