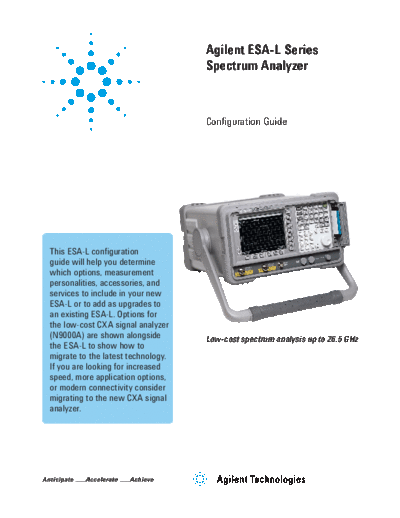

Image preview - the first page of the document



>> Download 5989-9952EN ESA-L Spectrum Analyzer - Configuration Guide c20131125 [8] documenatation <<

Text preview - extract from the document

                                    Agilent ESA-L Series
                                    Spectrum Analyzer



                                    Configuration Guide




This ESA-L configuration
guide will help you determine
which options, measurement
personalities, accessories, and
services to include in your new
ESA-L or to add as upgrades to
an existing ESA-L. Options for
the low-cost CXA signal analyzer
(N9000A) are shown alongside        Low-cost spectrum analysis up to 26.5 GHz
the ESA-L to show how to
migrate to the latest technology.
If you are looking for increased
speed, more application options,
or modern connectivity consider
migrating to the new CXA signal
analyzer.
Introduction
                                                                                                            Do you love your ESA-L, but need
This step-by-step guide will help you configure your ESA-L.
Capabilities that are listed as standard come with the                                                      a more modern, faster analyzer?
instrument at no additional charge. Tailor the performance,
exterior, and service packages to meet your requirements.                                                   The N9000A CXA is the ideal
                                                                                                            low-cost replacement for the
The ESA-L spectrum analyzer is available in one of two
express configurations: BAS or BTG. The express analyzers                                                   ESA-L basic analyzer.
offer faster delivery by limiting the number of options that
can be ordered together. The custom configuration allows                                                    www.agilent.com/find/CXA
for maximum flexibility in ordering the analyzer that best
meets your needs by offering all of the ESA-L options;
however, it increases the delivery timeframe.

Also included in this document is a side-by-side compari-
son of the ESA-L and the CXA.

With the Agilent N9000A CXA signal analyzer, a flexible,
dependable, versatile, and low cost tool for essential signal
characterization, you're ready for your next challenge. The
CXA can help you accelerate product testing and develop-
ment on multiple levels: cost reduction, throughput, design
enhancement, and beyond. Get the capabilities you need
with X-Series expandability in the CXA.


Table of contents:

ESA-L Basic Express Spectrum Analyzer (BAS/BTG) .............3
ESA-L Custom Configuration ...........................................................4
Express Analyzer and Bundle Equivalent Options .....................5
ESA-L Accessory, Calibration, and Warranty Options...............6
ESA-L Upgrade Options ......................................................................7
Related Literature .................................................................................8




                                                                                                        2
ESA-L Basic Express Spectrum Analyzer (BAS/BTG)

   Step 1. Select your frequency range
   Description                                            ESA-L model number                             CXA option number
   Frequency range, 9 kHz to 1.5 GHz                      E4411B                                         CXA Option 503 maximum frequency is 3.0 GHz
                                                          E4411B-BAS or
                                                          E4411B-BTG
   Frequency range, 9 kHz to 3.0 GHz                      E4403B                                         CXA Option 503 maximum frequency is 3.0 GHz
                                                          E4403B-BAS or
                                                          E4403B-BTG
   Frequency range, 9 kHz to 26.5 GHz                     E4408B                                         CXA Option 507 maximum frequency is 7.5 GHz
                                                          E4408B-BAS or                                  CXA Option 513 maximum frequency is 13.6 GHz
                                                          E4408B-BTG                                     CXA Option 526 maximum frequency is 26.5 GHz


   Step 1a. Included options at no additional charge
   Description                                            ESA-L spectrum analyzer                        CXA signal analyzer
   IF sweep and video output ports                        Option A4J1                                    Not available
   GPIB connection                                        Option A4H1                                    Standard on all CXA signal analyzers. In addition, the CXA offers
                                                                                                         7 USB ports and LAN connectivity as standard.
   IntuiLink PC connectivity software                     Connects to Microsoft
