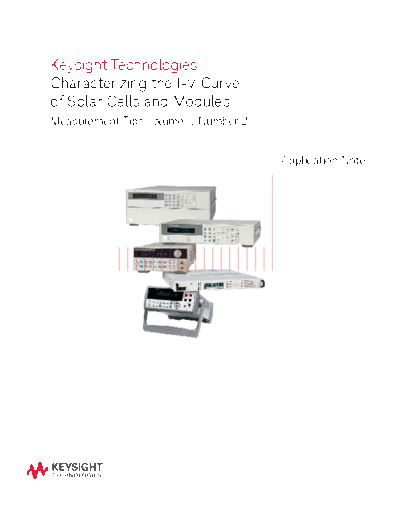

Image preview - the first page of the document
5990-4050EN English _ 2014-07-31 _ PDF 611 KB c20140910 [5]


>> Download 5990-4050EN English _ 2014-07-31 _ PDF 611 KB c20140910 [5] documenatation <<

Text preview - extract from the document
Keysight Technologies
Characterizing the I-V Curve
of Solar Cells and Modules
Measurement Tips Volume 7, Number 2


                                      Application Note
Explosive growth in the solar industry has intensiied the
                                                                     Characterizing the I-V curve from Isc to Voc
need for test and measurement solutions that can quickly             Characterizing a solar cell from the short circuit current
and accurately capture the I-V curve characteristics of solar        (Isc) to the open circuit voltage (Voc) requires a device with
cells and modules. Because solar technology is being used            a voltage range that covers Voc and can sink Isc. Charac-
in residential, commercial and military applications, solar          terizing the I-V curve is typically accomplished by stepping
cells and modules are developed in a wide range of power             the voltage from Isc to Voc. At each voltage step the current
levels and with various conversion eficiencies. Also, the            is measured. This can be achieved using an electronic load
different testing stages -- research, quality assurance and          or a two-quadrant DC source.
production -- have different needs for measurement speed,
measurement accuracy and the range of device characteris-
