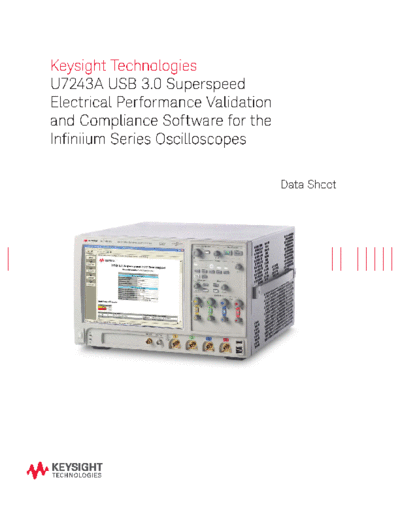

Keysight Technologies
U7243A USB 3.0 Superspeed
Electrical Performance Validation
and Compliance Software for the
Ininiium Series Oscilloscopes

                                    Data Sheet
Verify and debug your USB 3.0 designs more easily

Keysight Technologies, Inc. U7243A USB 3.0 validation and compliance software            Table of Contents
provides you with a fast and easy way to verify and debug your USB 3.0 products.         Features. . . . . . . . . . . . . . . . . . . . . . . . 3
The USB 3.0 electrical test software allows you to automatically execute USB 3.0         Benefits . . . . . . . . . . . . . . . . . . . . . . . 4
electrical tests, and it displays the results in a flexible report format. In addition   Easy Test Definition . . . . . . . . . . . . . 5
to the measurement data, the report provides a margin analysis that shows how            Configurability and
closely your device passed or failed each test.                                          Guided Connections . . . . . . . . . . . . . . 6
The U7243A USB 3.0 electrical test software utilizes the prescribed test methods         Reports with Margin Analysis. . . . . . 7
and algorithms as defined in the USB 3.0 rev 1.0 specification and draft test            Extensibility. . . . . . . . . . . . . . . . . . . . . 9
specification.                                                                           Automation . . . . . . . . . . . . . . . . . . . . 10
                                                                                         USB 3.0 Electrical Test Fixture . . . . 11
By incorporating the USBIF SigTest utility the U7243A USB 3.0 electrical test
software will provide you with consistent lab compliance test results with those         Powerful Debugging Aids . . . . . . . . 12
generated at USBIF workshops or test labs that use the stand-alone USBIF SigTest         Oscilloscope Compatibility . . . . . . . 15
tool for transmitter compliance verification. The advanced eye pattern and jitter        Ordering Information . . . . . . . . . . . . 16
analysis capabilities provided by the SDA electrical test option will allow product      Sales and Service . . . . . . . . . . . . . . 18
developers to quickly perform advanced eye and jitter analysis and debug to the
jitter component level.

The USB 3.0 electrical performance validation and compliance software performs
a wide range of electrical tests, including both normative and informative
requirements, as per the USB 3.0 specification and the USB 3.0 electrical
compliance test specification.

* Note: The final USB 3.0 electrical test specification (rev 1.0) is not yet released.
Test coverage and requirements are based on the rev 0.5 revision and will be
updated when the final test specification is complete.




                                                                   2
Features

The U7243A USB 3.0 electrical test software offers several features to simplify the
validation of USB 3.0 designs:
