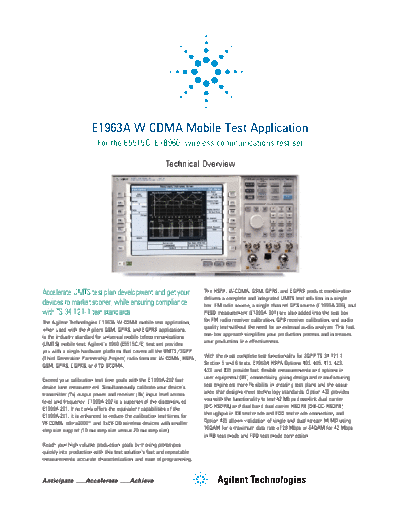

Image preview - the first page of the document



>> Download 5990-5637EN English _ 2014-05-19 _ PDF 1.30 MB c20140519 [25] documenatation <<

Text preview - extract from the document

                      E1963A W-CDMA Mobile Test Application
                         For the E5515C/E (8960) wireless communications test set

                                                        Technical Overview




Accelerate UMTS test plan development and get your                      The HSPA, W-CDMA, GSM, GPRS, and EGPRS product combination
                                                                        delivers a complete and integrated UMTS test solution in a single
devices to market sooner, while ensuring compliance                     box. FM radio source, a single channel GPS source (E1999A-206), and
with TS 34.121-1 test standards.                                        PESQ measurement (E1999A-301) are also added into the test box
The Agilent Technologies E1963A W-CDMA mobile test application,         for FM radio receiver calibration, GPS receiver calibration, and audio
when used with the Agilent GSM, GPRS, and EGPRS applications,           quality test without the need for an external audio analyzer. This fast,
is the industry standard for universal mobile telecommunications        one-box approach simplifies your production process and increases
(UMTS) mobile test. Agilent's 8960 (E5515C/E) test set provides         your production line effectiveness.
you with a single hardware platform that covers all the UMTS/3GPP
(Third Generation Partnership Project) radio formats: W-CDMA, HSPA,     With the most complete test functionality for 3GPP TS 34.121-1
GSM, GPRS, EGPRS, and TD-SCDMA.                                         Section 5 and 6 tests, E1963A HSPA Options 403, 405, 413, 423,
                                                                        433, and 435 provide fast, flexible measurements and options in
Exceed your calibration test time goals with the E1999A-202 fast        user equipment (UE) connectivity, giving design and manufacturing
device tune measurement. Simultaneously calibrate your device's         test engineers more flexibility in creating test plans and the assur-
transmitter (Tx) output power and receiver (Rx) input level across      ance that designs meet technology standards. Option 433 provides
level and frequency. E1999A-202 is a superset of the discontinued       you with the functionality to test 42 Mbps downlink dual carrier
E1999A-201. It not only offers the equivalent capabilities of the       (DC-HSDPA) and dual band dual carrier HSDPA (DB-DC-HSDPA)
E1999A-201, it is enhanced to reduce the calibration test times for     throughput in RB test mode and FDD test mode connection, and
W-CDMA, cdma2000
