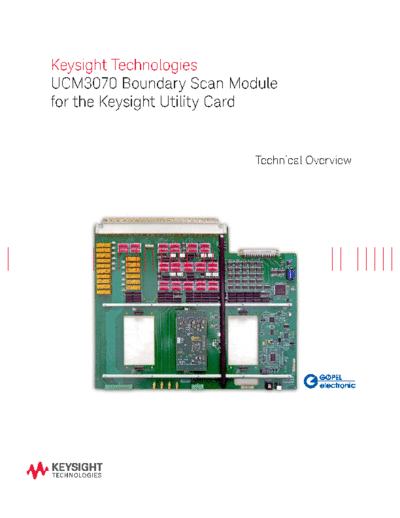

Image preview - the first page of the document



>> Download 5990-5913EN UCM3070 Boundary Scan Module for the Keysight Utility Card c20140925 [4] documenatation <<

Text preview - extract from the document

Keysight Technologies
UCM3070 Boundary Scan Module
for the Keysight Utility Card


                          Technical Overview
                                         1. Overview
                                         The UCM3070 is a boundary scan controller, which is customized for
                                         integration into the Keysight Technologies, Inc. Utility Card on the
                                         Keysight Medalist i3070 Series 5 in-circuit test (ICT) system. This
                                         controller is based on the GOEPEL SCANBOOSTER architecture and
                                         is designed as a plug-in card for usage in a free slot on the Keysight
                                         Utility Card.



                                         2. Hardware Features of the UCM3070
Highlight of UCM3070 Features
                                         2.1 PIP Signals
