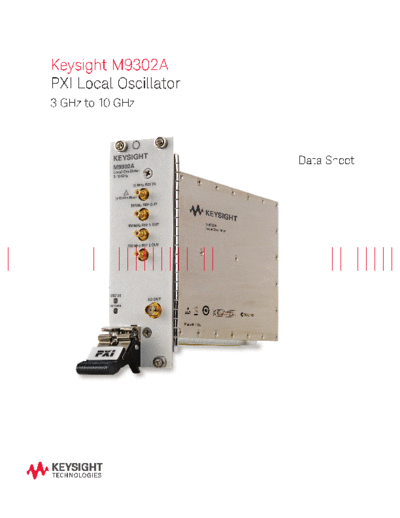

Image preview - the first page of the document



>> Download 5990-6053EN M9302A PXI Local Oscillator 3GHz to 10GHz - Data Sheet c20141014 [8] documenatation <<

Text preview - extract from the document

Keysight M9302A
PXI Local Oscillator
3 GHz to 10 GHz



                       Data Sheet
Overview

    Introduction
    The Keysight Technologies, Inc. M9302A PXI Local Oscillator (LO) is optimized for fast settling time to
    allow for fast frequency down conversion in Aerospace and Defense applications such as radar and
    wideband signal capture, and in wireless communications applications.


    Product description
    The M9302A is a two-slot 3U PXI VCO-based 3 GHz to 10 GHz LO. The fast switching time and low
    phase noise of this LO make it an ideal component of a microwave vector signal analyzer.

    When integrated in the Keysight M9392A PXI Vector Signal Analyzer, and combined with the 89600
    VSA software, the M9302A becomes a part of a complete signal analysis solution enabling analysis of
    communications, radar and avionics signals to 26.5 GHz in a modular open-system standard.
