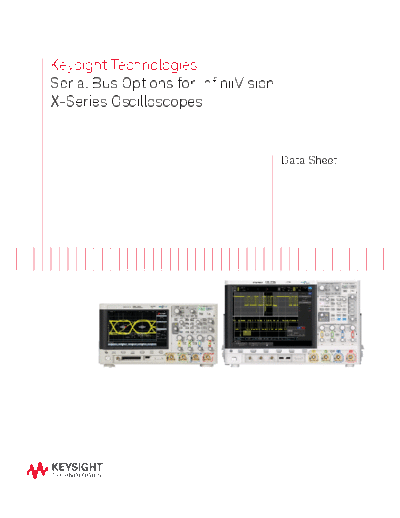

Keysight Technologies
Serial Bus Options for InfiniiVision
X-Series Oscilloscopes


                                       Data Sheet
Introduction

     Serial buses are pervasive in today's digital designs and are used for a variety of purposes including
     on-board chip-to-chip communication, CPU to peripheral control, as well as for remote sensor data
     transfer and control.
     Without intelligent oscilloscope serial bus triggering and protocol decode, it can be difficult to
     debug these buses and correlate data transfers with other mixed signal interactions in your system.
     Keysight Technologies, Inc. InfiniiVision X-Series oscilloscopes (DSOs) and mixed-signal oscilloscopes
     (MSOs) offer optional integrated serial bus triggering and hardware-based protocol decoding
     solutions that give you the tools you need to accelerate debug of your designs that include serial bus
     communication.
