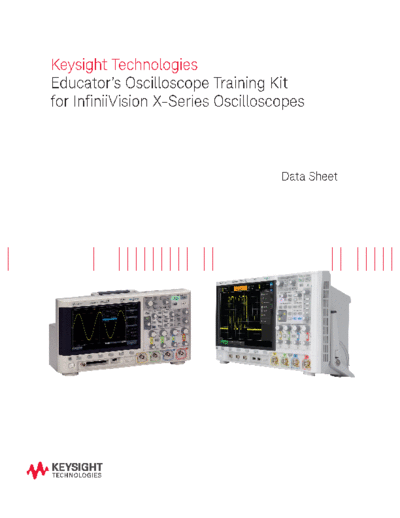

Image preview - the first page of the document



>> Download 5990-6690EN English _ 2014-04-09 _ PDF 2.10 MB c20141013 [8] documenatation <<

Text preview - extract from the document

Keysight Technologies
Educator's Oscilloscope Training Kit
for InfiniiVision X-Series Oscilloscopes



                                    Data Sheet
Introduction

     The Keysight Technologies, Inc. InfiniiVision 2000, 3000, 4000 and 6000 X-Series digital storage and
     mixed signal oscilloscopes (DSOs and MSOs) are ideal for students to use in their undergraduate
     electrical engineering and physics circuits labs. These X-Series scope families include 50 different
     models ranging from the lowest priced DSOX2002A (2-channel, 70 MHz DSO), to the highest
     performance MSOX6004 (4 channel, 6 GHz MSO). What makes these scopes even more compelling
     for the EE and physics education environment is the optional Educator's Oscilloscope Training Kit
     (DSOXEDK).

     The Educator's Oscilloscope Training Kit provides an array of built-in training signals, so that electrical
     engineering and physics students can learn what an oscilloscope does and how they can perform
     basic oscilloscope measurements. Also included in the kit is a comprehensive oscilloscope lab guide
     and tutorial written specifically for the undergraduate student. Professors and students can download
     this at no charge.

     Keysight also provides a PowerPoint slide-set that professors and lab assistants can use as a pre-lab
     lecture on oscilloscope fundamentals. This lecture takes about 30 minutes and should be presented
     before electrical engineering and physics students begin their first circuits lab. Note that this
     PowerPoint slide-set also includes a complete set of speaker notes.
