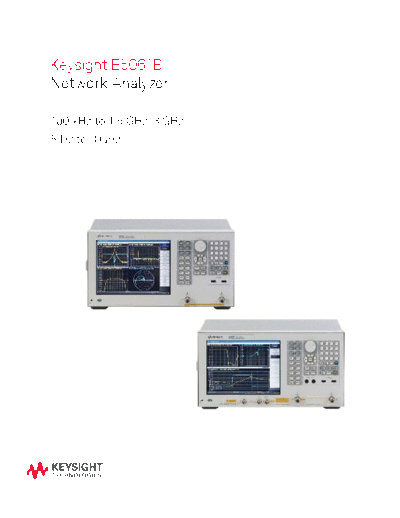

Image preview - the first page of the document



>> Download 5990-6794EN E5061B Network Analyzer - Brochure c20141029 [8] documenatation <<

Text preview - extract from the document

Keysight E5061B
Network Analyzer

100 kHz to 1.5 GHz/3 GHz
5 Hz to 3 GHz
02 | Keysight | E5061B Network Analyzer,100 kHz to 1.5 GHz/3 GHz, 5 Hz to 3 GHz - Brochure



E5061B responds to various measurement needs, from LF to RF
The Keysight Technologies, Inc. E5061B is
a member of the industry standard ENA
Series network analyzers. The E5061B                                                                                               RF NA
addresses a broad range of measure-
                                                                                        75                                         options
ment needs of electronic components
                                                                    Network                               LF-RF NA
and circuits from low to high frequencies.                          analysis                              option
                                                                                        50
The E5061B is the ideal solution for ap-
plications in industries such as wireless
communications, aerospace and defense,                             Impedance analysis
computer, medical, automotive, CATV, plus
many more. The E5061B now provides a
new standard of frequency-domain device                                                            5 Hz              100 kHz                        3 GHz
analysis from 5 Hz to 3 GHz.




                                                                                      RF NA options
                                                                                      E5061B-115/215/135/235: 50
                                                                                      E5061B-117/217/137/217: 75
                                                                                      Economy RF network analyzer that offers solid performance for
                                                                                      basic RF network measurements
