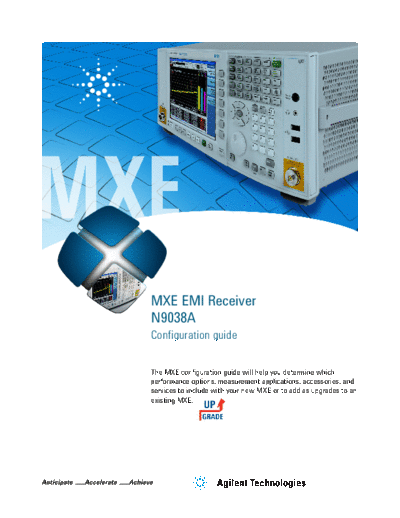

Image preview - the first page of the document



>> Download 5990-7419EN N9038A MXE EMI Receiver - Configuration Guide c20131106 [6] documenatation <<

Text preview - extract from the document

MXE EMI Receiver
N9038A
Configuration guide


The MXE configuration guide will help you determine which
performance options, measurement applications, accessories, and
services to include with your new MXE or to add as upgrades to an
existing MXE.
Configure Your Agilent MXE EMI Receiver
This step-by-step process will help you configure your MXE. Capabilities that are listed as standard come with the
instrument at no additional charge. Tailor the performance to meet your needs.

 Step 1. Select maximum frequency range (required option; frequency range not upgradeable)
 Description                              Option number           Additional information
 Frequency range, 20 Hz to 8.4 GHz        N9038A-508
 Frequency range, 20 Hz to 26.5 GHZ       N9038A-526
 Frequency range, 20 Hz to 44 GHZ         N9038A-544

 Step 2. Choose a preamplifier
 Description                              Option number           Additional information
 Preamplifier, 100 kHz to 8.4 GHz         Standard (N9038A-P08)   Standard with frequency range Option N9038A-508
 Preamplifier, 100 kHz to 26.5 GHz        Standard (N9038A-P26)   Standard with frequency range Option N9038A-526
 Preamplifier, 100 kHz to 44 GHz          Standard (N9038A-P44)   Standard with frequency range Option N9038A-544

 Step 3. Frequency reference
 Description                              Option number           Additional information
 Precision frequency reference            Standard (N9038A-PFR)   Aging rate
