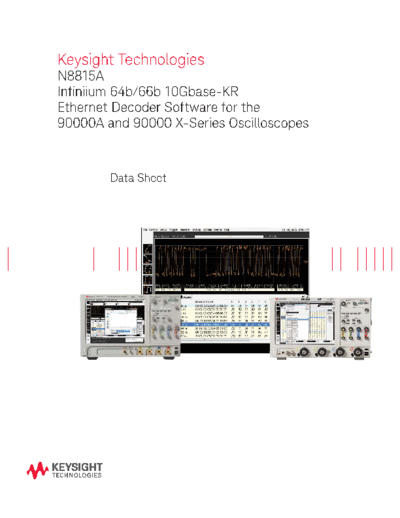

Image preview - the first page of the document



>> Download 5990-8968EN N8815A Infiniium protocol viewer software for the 90000A and 90000 X-Series Oscilloscopes c20141023 [8] documenatation <<

Text preview - extract from the document

Keysight Technologies
N8815A
Ininiium 64b/66b 10Gbase-KR
Ethernet Decoder Software for the
90000A and 90000 X-Series Oscilloscopes


        Data Sheet
Introduction

     64b/66b encoding is a principal line code that is used in data networking and
     transmission. 64b/66b encoding is the principal encoding scheme behind the
     10Gbase-KR (x1/x4) technology as it achieves DC balance across a serial stream.
     The 64b/66b encoding also has less overhead than the 8b/10b encoding scheme.

     Keysight Technologies, Inc. N8815A Infiniium protocol viewer software for 10
     Gbase-KR Ethernet is the only 64b/66b protocol analyzer technology available
     on a real time oscilloscope, providing time-correlated views of physical layer and
     transaction layer errors.

     You get packet-level decode for 64b/66b Ethernet signals built into a real-time
     oscilloscope. This software provides you with a fast, easy way to isolate signal
     integrity problems from logic-level coding errors simultaneously on up to four lanes
     of serial data streams. This capability allows you to test, debug and characterize
     your designs to the logic and link layer. The N8815A Infiniium protocol analyzer
     software is designed to work with 10 Gbase-KR Ethernet technologies. It also
     comes with the unique ability to identify PRBS signal lengths to verify the correct
     signals are being passed though the DUT.
Features                                                      Comprehensive Decode Capability
The N8815A Infiniium protocol viewer software offers          With the N8815A Infiniium 64b/66b protocol analyzer
several features to simplify the validation of your 64b/66b   software, you can use the same oscilloscope you use for
designs:                                                      everyday debugging and signal quality testing to perform
