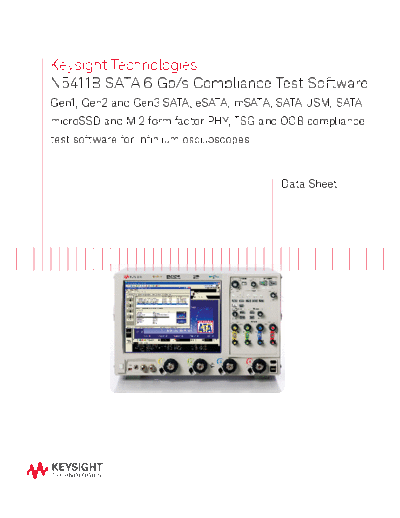

Image preview - the first page of the document
>> Download 5990-3594EN N5411B SATA 6Gb s Compliance Test Software - Data Sheet c20140812 [15] documenatation <<Text preview - extract from the documentKeysight Technologies
N5411B SATA 6 Gb/s Compliance Test Software
Gen1, Gen2 and Gen3 SATA, eSATA, mSATA, SATA USM, SATA
microSSD and M.2 form factor PHY, TSG and OOB compliance
test software for Infiniium oscilloscopes
Data Sheet
Introduction
The SATA compliance test software for Infiniium oscilloscopes provides Features
you with a fast and easy way to validate and debug your SATA 1.5-Gb/s
(Gen1), 3.0Gb/s (Gen2) and 6.0Gb/s (Gen3) silicon, host bus adapters, port The SATA software offers several
multipliers, high-density disk drives, solid-state disk drives and optical disk features to simplify the validation of
drives. The software provides automated compliance test support for the i SATA designs:
(internal), m (eSATA) and u (mSATA, SATA USM, SATA microSSD and M.2
