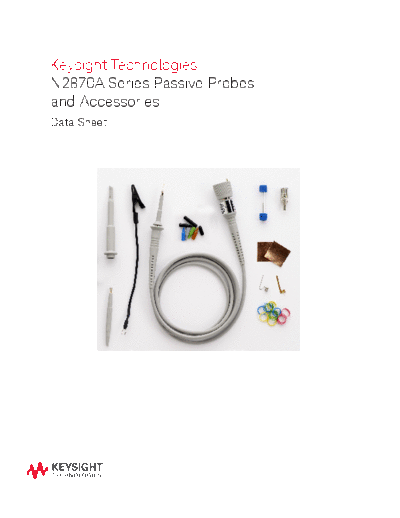

Image preview - the first page of the document



>> Download 5990-3930EN N2870A Series Passive Probes and Accessories - Data Sheet c20140905 [11] documenatation <<

Text preview - extract from the document

Keysight Technologies
N2870A Series Passive Probes
and Accessories
Data Sheet
Introduction

     The N2870A Series passive probe family sets new standards in high performance probing of up to
     1.5 GHz bandwidth. These general purpose probes and accessories offer high quality measurements
     at a very reasonable price.


     Faithful reproduction of signals
     The N2870A Series passive probes offer DC to 35 MHz, 200 MHz, 350 MHz, 500 MHz and 1.5 GHz
     bandwidths and various attenuation factors to address a wide range of measurement needs. For
     general purpose probing, you can use the N2873A 500 MHz model, which provides superior 10 M
     input resistance, 9.5 pF of low input capacitance and low-inductance ground connection. This keeps
     probe loading low enough to achieve high signal integrity measurements. The 1.5 GHz passive probe
     offers even lower input capacitance for measuring faster edges more accurately, making it a low-cost
     alternative to an active probe.

     All N2870A Series probes come with the probe ID readout feature, allowing the probe to be
     automatically recognized when connected to most Keysight Technologies, Inc. oscilloscopes.


     Family of 7 mini passive probes spanning from 35 MHz to 1.5 GHz
