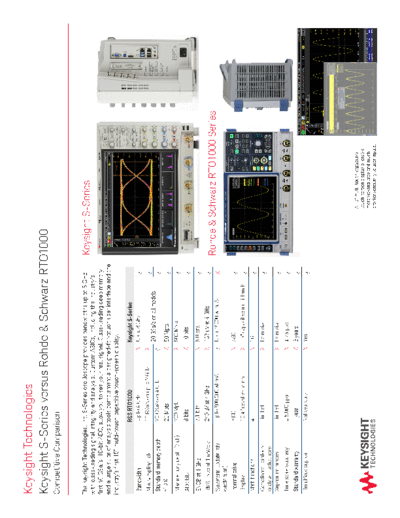

Image preview - the first page of the document



>> Download 5991-4018EN Keysight S-Series and 6000 X-Series versus Rohde & Schwarz RTO1000 - Competitive Comparison c20140915 [2] documenatation <<

Text preview - extract from the document

Keysight Technologies
Keysight S-Series versus Rohde & Schwarz RTO1000
Competitive Comparison


The Keysight Technologies, Inc. S-Series oscilloscope provides bandwidths up to 8 GHz        Keysight S-Series
with class-leading signal integrity and analysis. Custom ASICs, including the industry's
first 40 GSa/s, 10-bit ADC, allow you to see your real signal. Class-leading deep memory
and a large suite of analysis tools complement a designed-for-touch user interface and the
industry's first 15" multi-touch capacitive touch-screen display.

                            R&S RTO1000                   Keysight S-Series
 Bandwidth                  Up to 4 GHz                 X Up to 8 GHz
 Max sampling rate          10 GSa/s on up to 2 GHz     X
                                                            20 GSa/s on all models
 Standard memory depth      20 GSa/s on 4 GHz
 (4 ch)                     20 Mpts                     X 50 Mpts
 Max memory depth (2 ch)    200 Mpts                    X 800 Mpts
 ADC bits                   8 bits                      X 10 bits
 ENOB at 1 GHz              7.1 bits                    X 8.0 bits
 RMS noise at 1 mV/div      240 uV at 4 GHz             X 153 uV at 4 GHz
 Waveform update rate       Up to 600,000 wfms/s            Up to 2,000 wfms/s         X
                                                                                             Rohde & Schwarz RTO1000 Series
 (vectors on)
 Internal drive             HDD                         X SSD
 Display                    10.4" resistive touch       X 15" capacitive multi-touch
 Math functions             4                           X 16
 Compliance, protocol,      Limited                     X Extensive
 analysis applications
 Supported probes           Limited                     X Extensive
 Time scale accuracy
