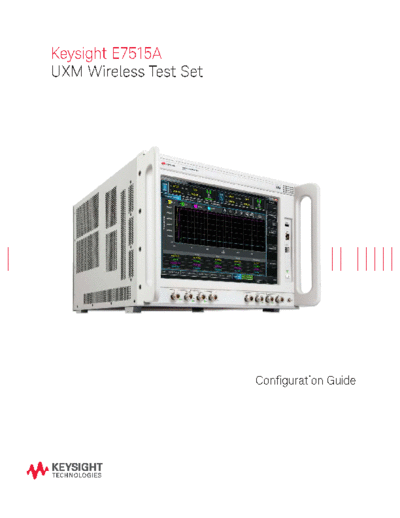

Image preview - the first page of the document
![5991-4078EN English _ 2014-07-31 _ PDF 531 KB c20140829 [9]](/pics/5c49c2feedf73.gif)
>> Download 5991-4078EN English _ 2014-07-31 _ PDF 531 KB c20140829 [9] documenatation <<
Text preview - extract from the document
Keysight E7515A
UXM Wireless Test Set
Coniguration Guide
02 | Keysight | E7515A UXM Wireless Test Set - Coniguration Guide
Make a Clear Call
The team looks to you: will a new chipset or UE pass the crucial tests? Clarity comes
from accumulated insights, and that's the idea behind the Keysight Technologies Inc.
UXM wireless test set. The UXM is the most highly integrated signaling test set created
for functional and RF design validation in the 4G era and beyond. It provides the capa-
bilities you need to test the newest designs, delivering LTE-Advanced category 7 now
and handling increasingly complex test cases in the future. When the team counts on
you, count on the UXM to help you assess design readiness with greater conidence and
make a clear call.
Overview
This coniguration guide contains a step-by-step process to help you conigure your
E7515A UXM wireless test set with hardware, software, accessories, and services to
meet your speciic test requirements, or to upgrade your existing UXM.
Table of Contents
1. Select LTE/LTE-Advanced Test Application or Lab Application..................................... 3
1.1 E7530A LTE/LTE-Advanced test application (TA) ..................................................... 3
1.2 E7630A LTE/LTE-Advanced lab application (LA) ...................................................... 3
1.3 TA and LA upgrades ..................................................................................................... 3
2. Select UXM Wireless Test Set Features ........................................................................... 4
2.1 Choose the operating frequency range ...................................................................... 4
2.2 Choose between single-transmit/receive (TRX) and dual-TRX ............................... 4
2.3 Channel emulation ....................................................................................................... 4
2.4 Protocol logging .......................................................................................................... 4
2.5 Accessories and documentation ................................................................................ 4
2.6 Warranty, calibration, and start-up assistance ......................................................... 5
2.6.1 Hardware warranty ......................................................................................... 5
2.6.2 Calibration....................................................................................................... 5
2.6.3 Startup and productivity assistance............................................................. 5
2.7 UXM wireless test set upgrades ................................................................................. 5
2.7.1 User-installable upgrade kits ......................................................................... 5
2.7.2 Return-to-Keysight upgrades ........................................................................ 5
3. Example Conigurations..................................................................................................... 6
3.1 LTE FDD TDD RF design validation, single-cell ......................................................... 6
3.2 LTE-A FDD RF design validation, with CA, MIMO, and channel emulation ............. 6
3.3 LTE FDD and TDD RF design validation and functional performance test .............. 7
3.4 LTE-A FDD RF design validation and functional performance test with CA, MIMO,
and channel emulation ................................................................................................ 7
4. Related Software Applications
4.1 VoLTE testing with IMS-SIP network emulator .......................................................... 8
4.2 Battery drain analysis and automation ...................................................................... 8
03 | Keysight | E7515A UXM Wireless Test Set - Coniguration Guide
1. Select LTE/LTE-Advanced Test Application or
Lab Application
The "ixed" licenses shown below are tied to a speciic UXM host instrument. "Transportable"
licenses are also offered and allow licenses to be moved between different UXMs. For trans-
portable licensing simply substitute -*TP instead of -*FP in the license part number.
1.1 E7530A LTE/LTE-Advanced test application (TA)
The TA was created to meet the needs of RF design validation, with lexible receiver test,
trusted X-Series transmitter measurement science, and basic network emulation.
Choose the FDD or TDD base option (or both) and desired feature options for additional
functionality.
Feature license Description
E7530A-1FP-FDD FDD, ixed perpetual license
E7530A-1FP-TDD TDD, ixed perpetual license
E7530A-AFP-FDD 2CC DL carrier aggregation (FDD), ixed perpetual license
E7530A-BFP 4x2 DL MIMO (FDD/TDD), ixed perpetual license
For details visit www.keysight.com/find/E7530A
1.2 E7630A LTE/LTE-Advanced lab application (LA)
The LA is targeted at overall device design validation, including both functional and RF per-
formance. It includes the receiver and transmitter test functionality of the TA, plus IP data-
based capabilities such as end-to-end IP data throughput and advanced network emulation
such as complex handover scenarios required for VoLTE 1 and battery drain 1 testing.
Additionally, each LA version license adds new capabilities, building on the previous version 2.
Choose the LA version that includes the functionality required for your particular testing
needs.
Feature license Description
E7630A-1FP-FDD FDD version A.01 (LTE rel 8), ixed perpetual license
E7630A-1FP-TDD TDD version A.01 (LTE rel 8), ixed perpetual license
E7630A-2FP-FDD FDD version A.02, ixed perpetual license
E7630A-2FP-TDD TDD version A.02, ixed perpetual license
E7630A-MTP Message editor, transportable perpetual license
For details visit www.keysight.com/find/E7630A
1.3 TA and LA upgrades
Feature license Description
E7630A-1FP-FTA FDD TA to version A.01 LA upgrade, ixed perpetual license
E7630A-1FP-TTA TDD TA to version A.01 LA upgrade, ixed perpetual license
E7630A-2FP-F01 FDD LA version A.01 to A.02 upgrade, ixed perpetual license
E7630A-2FP-T01 TDD LA version A.01 to A.02 upgrade, ixed perpetual license
1. Additional system components are required to verify VoLTE and battery drain performance.
Ref. section 4.
2. LA version A.02 is a superset of A.01.
04 | Keysight | E7515A UXM Wireless Test Set - Coniguration Guide
2. Select UXM Wireless Test Set Features
Conigure the E7515A UXM wireless test set with features for your application
requirements.
2.1 Choose the operating frequency range
Feature Description
E7515A-504 (standard) Frequency range 300 MHz to 3.8 GHz
E7515A-506 Frequency range 300 MHz to 6 GHz
2.2 Choose between single-transmit/receive (TRX) and dual-TRX
Single TRX is included as standard
Feature Description
E7515A-RA1 (standard) RF up-down converter A
E7515A-BA1 (standard) Digital baseband transceiver A
For dual-TRX, supporting two independent cells or carriers (for Carrier Aggregation) add:
Feature Description
E7515A-RB1 RF up-down converter B
E7515A-BB1 Digital baseband transceiver B
2.3 Channel emulation
For channel emulation capability such as fading, select:
Feature Description
E7515A-C01 Channel emulator
Relevant fading proiles are provided in the TA or LA installed on the test set.
2.4 Protocol logging
Enables protocol information to be sent to a standalone logging application
Feature Description
E7515A-L01 Protocol logging data source
2.5 Accessories and documentation
The following are included as standard
Feature Description
E7515A-1BW Getting Started Guide
E7515A-KYB Keyboard, USB
E7515A-MSE Mouse, USB
E7515A-9xx Powercord (15 A)
05 | Keysight | E7515A UXM Wireless Test Set - Coniguration Guide
2. Select UXM Wireless Test Set Features (continued)
Configure the E7515A UXM wireless test set with features for your application
requirements.
2.6 Warranty, calibration, and start-up assistance
2.6.1 Hardware warranty
Feature Description
Standard Return-to-Keysight warranty: 3 years 1
R-51B-001-5Z Warranty Assurance Plan - Return-to-Keysight: 5 years
2.6.2 Calibration
Feature Description
Standard Keysight factory calibration
E7515A-UK6 Commercial calibration certiicate with test data
2.6.3 Startup and productivity assistance
Feature Description
PS-S20 (standard) 1-day on site startup assistance
PS-S20-01 Recommended startup assistance
PS-S10 Remote scheduled productivity assistance. Select 1 to 999 hours
PS-X10 Custom services to be qualiied by a Keysight technical consultant
2.7 UXM wireless test set upgrades
2.7.1 User-installable upgrade kits
Feature Description
E7515AK-506 Extend frequency range to 6 GHz
E7515AK-C01 Channel emulator
E7515AK-L01 Protocol logging data source
2.7.2 Return-to-Keysight upgrades
Feature Description
E7515AU-RB1 RF up-down converter B
E7515AU-BB1 Digital baseband transceiver B
1. For more detailed information on the Keysight 3-year warranty go to
www.keysight.com/find/ThreeYearWarranty
06 | Keysight | E7515A UXM Wireless Test Set - Coniguration Guide
3. Example Conigurations
3.1 LTE FDD TDD RF design validation, single-cell
Application software
Feature license Description
E7530A-1FP-FDD FDD, ixed perpetual license
E7530A-1FP-TDD TDD, ixed perpetual license
UXM wireless test set
Feature Description
E7515A-504 (standard) Frequency range 300 MHz to 3.8 GHz
E7515A-RA1 (standard) RF up-down converter A
E7515A-BA1 (standard) Digital baseband transceiver A
E7515A-1BW (standard) Getting started guide
E7515A-KYB (standard) Keyboard, USB
E7515A-MSE (standard) Mouse, USB
E7515A-9xx (standard) Powercord (15 A)
3.2 LTE-A FDD RF design validation, with CA, MIMO,
channel emulation, and logging
Application software
Feature license Description
E7530A-1FP-FDD FDD, ixed perpetual license
E7530A-AFP-FDD 2CC DL carrier aggregation (FDD), ixed perpetual license
E7530A-BFP 4x2 DL MIMO (FDD/TDD), ixed perpetual license
UXM wireless test set
Feature Description
E7515A-504 (standard) Frequency range 300 MHz to 3.8 GHz
E7515A-RA1 (standard) RF up-down converter A
E7515A-BA1 (standard) Digital baseband transceiver A
E7515A-RB1 RF up-down converter B
E7515A-BB1 Digital baseband transceiver B
E7515A-C01 Channel emulator
E7515A-L01 Protocol logging data source
E7515A-1BW (standard) Getting Started Guide
E7515A-KYB (standard) Keyboard, USB
E7515A-MSE (standard) Mouse, USB
E7515A-9xx (standard) Powercord (15 A)
07 | Keysight | E7515A UXM Wireless Test Set - Coniguration Guide
3. Example Conigurations (continued)
3.3 LTE FDD and TDD RF design validation and functional
performance test
Feature license Description
E7630A-1FP-FDD FDD version A.01 (LTE rel 8), ixed perpetual license
E7630A-1FP-TDD TDD version A.01 (LTE rel 8), ixed perpetual license
E7630A-MTP Message editor, transportable perpetual license
UXM wireless test set (standard features)
Feature Description
E7515A-504 Frequency range 300 MHz to 3.8 GHz
E7515A-RA1 RF up-down converter A
E7515A-BA1 Digital baseband transceiver A
E7515A-L01 Protocol logging data source
E7515A-1BW Getting started guide
E7515A-KYB Keyboard, USB
E7515A-MSE Mouse, USB
E7515A-9xx Powercord (15 A)
3.4 LTE-A FDD RF design validation and functional performance test
with CA, MIMO, and channel emulation
Application software
Feature license Description
E7630A-2FP-FDD FDD version A.02, ixed perpetual license
E7630A-MTP Message editor, transportable perpetual license
UXM wireless test set
Feature Description
E7515A-504 (standard) Frequency range 300 MHz to 3.8 GHz
E7515A-RA1 (standard) RF up-down converter A
E7515A-BA1 (standard) Digital baseband transceiver A
E7515A-RB1 RF up-down converter B
E7515A-BB1 Digital baseband transceiver B
E7515A-C01 Channel emulator
E7515A-L01 Protocol logging data source
E7515A-1BW (standard) Getting Started Guide
E7515A-KYB (standard) Keyboard, USB
E7515A-MSE (standard) Mouse, USB
E7515A-9xx (standard) Powercord (15 A)
08 | Keysight | E7515A UXM Wireless Test Set - Coniguration Guide
4. Related Software Applications
4.1 VoLTE testing with IMS-SIP network emulator
Feature license Description
E6966B-1FP IMS-SIP server emulator, ixed, perpetual license
E6966B-2FP IMS-SIP client emulator, ixed, perpetual license
E6966B-3FP IMS-SIP conference server emulator, ixed, perpetual license
For further details visit www.keysight.com/find/e6966b
4.2 Battery drain analysis and automation
Feature license Description
14585A Control and analysis software for advanced power supplies
14565B Device characterization software with test automation
For further details visit
www.keysight.com/find/14585a
www.keysight.com/find/14565b
09 | Keysight | E7515A UXM Wireless Test Set - Coniguration Guide
myKeysight For more information on Keysight
Technologies' products, applications or
www.keysight.com/find/mykeysight
services, please contact your local Keysight
A personalized view into the information most relevant to you.
office. The complete list is available at:
Three-Year Warranty www.keysight.com/find/contactus
www.keysight.com/find/ThreeYearWarranty
Keysight's commitment to superior product quality and lower total cost Americas
of ownership. The only test and measurement company with three-year Canada (877) 894 4414
warranty standard on all instruments, worldwide. Brazil 55 11 3351 7010
Mexico 001 800 254 2440
Keysight Assurance Plans United States (800) 829 4444
www.keysight.com/find/AssurancePlans
Up to five years of protection and no budgetary surprises to ensure your Asia Paciic
instruments are operating to specification so you can rely on accurate Australia 1 800 629 485
measurements. China 800 810 0189
Hong Kong 800 938 693
www.keysight.com/quality India 1 800 112 929
Keysight Technologies, Inc. Japan 0120 (421) 345
DEKRA Certified ISO 9001:2008 Korea 080 769 0800
Quality Management System Malaysia 1 800 888 848
Singapore 1 800 375 8100
Keysight Channel Partners Taiwan 0800 047 866
www.keysight.com/find/channelpartners Other AP Countries (65) 6375 8100
Get the best of both worlds: Keysight's measurement expertise and product
breadth, combined with channel partner convenience. Europe & Middle East
Austria 0800 001122
Belgium 0800 58580
Finland 0800 523252
www.keysight.com/find/uxm France 0805 980333
www.keysight.com/find/e7515a Germany 0800 6270999
Ireland 1800 832700
Israel 1 809 343051
Italy 800 599100
Luxembourg +32 800 58580
Netherlands 0800 0233200
Russia 8800 5009286
Spain 0800 000154
Sweden 0200 882255
Switzerland 0800 805353
Opt. 1 (DE)
Opt. 2 (FR)
Opt. 3 (IT)
United Kingdom 0800 0260637
For other unlisted countries:
www.keysight.com/find/contactus
(BP-07-01-14)
This information is subject to change without notice.
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
