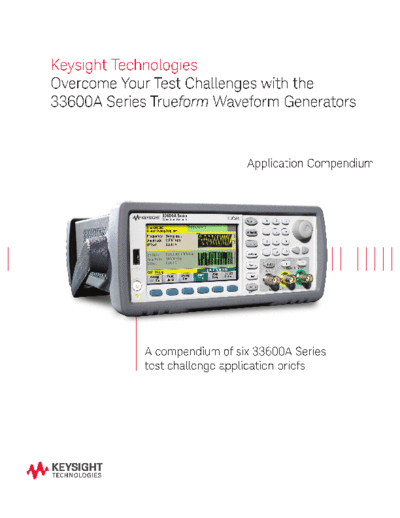

Keysight Technologies
Overcome Your Test Challenges with the
33600A Series Trueform Waveform Generators


                              Application Compendium




            A compendium of six 33600A Series
            test challenge application briefs
Introduction

     Generating the signals you need for your measurements can be a tedious and time-consuming task,
     one that's often complicated over uncertainty whether your signal generator is outputting the signals
     you expect. The Keysight Technologies, Inc. 33600A Series of waveform generators with exclusive
     Trueform technology offer you the capabilities, fidelity and flexibility you need to easily and confi-
     dently generate signals for even your most complex tests. Superior signal integrity guarantees you
     the highest resolution and lowest distortion for playing arbitrary waveforms with a complete repre-
     sentation of signals and creating complex waveform sequences. The ability to choose from a range of
     different upgradeable models means you have the functionality you need to easily address your test
     challenges today and in the future.

     Some of the key test challenges for which the 33600A Series Trueform waveform generators are
     especially well suited include:


               Simulating Signals with the Highest Integrity .................................................................... 3
               Be More Efficient Designing Your Arbitrary Waveforms..................................................... 6
               Generating a Waveform with Many Points .......................................................................... 8
               Effortlessly Couple or Synchronize Two Signals on a Waveform Generator................... 11
               Using a Waveform Generator to Generate a Pseudo Random Binary
               Sequence (PRBS) Signal ..................................................................................................... 14
               Creating a Differential Signal with a Waveform Generator.............................................. 17
03 | Keysight | Overcome Your Test Challenges with the 33600A Series Trueform Waveform Generators - Application Brief



Simulating Signals with the Highest Integrity
 Test challenge examples:                                                         How Trueform technology can help:
