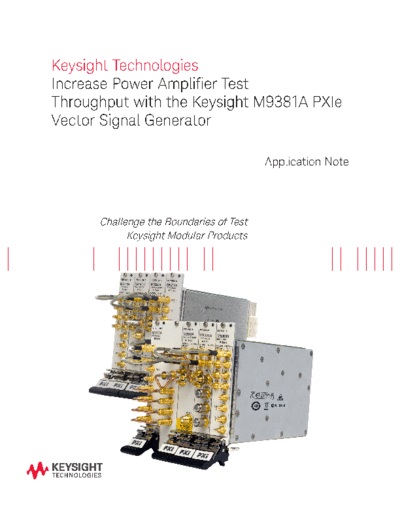

Image preview - the first page of the document
>> Download 5991-0652EN Increase Power Amplifier Test Throughput with the Keysight PXIe Vector Signal Analyzer and Generator c20140724 [6] documenatation <<Text preview - extract from the documentKeysight Technologies
Increase Power Amplifier Test
Throughput with the Keysight M9381A PXIe
Vector Signal Generator
Application Note
Challenge the Boundaries of Test
Keysight Modular Products
Introduction
Abstract
Power amplifier designs for mobile handsets are becoming more complex, which directly impacts test demands
and the cost of test. Complexity increases with the introduction of new, wider bandwidth standards and the
addition of the number of radios to each device. At the same time, demand for improved battery life is driving
efficiency improvements, such as digital pre-distortion and envelope tracking. Business issues, such as pressure
on prices of these devices places greater demands on engineering teams producing power amplifiers.
Engineers who test mobile power amplifiers and front end modules on the production line are looking for solu-
tions to reduce test cost through maximizing throughput while ensuring that the devices meet required perfor-
mance levels.
This application note provides an overview of the key issues in a power amplifier and front end module test sys-
tem related to the RF signal analyzer and generator.
Key issues faced by power amplifier Using the M9391A VSA and
test engineers M9381A VSG to increase test
This application note addresses test challenges faced by
throughput and quality
power amplifier engineers including:
The Keysight Technologies, Inc. M9391A and
