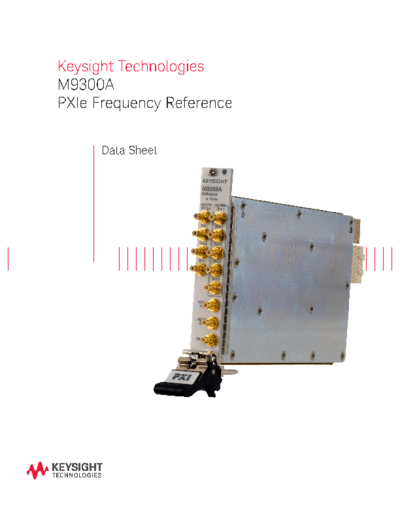

5991-0898EN M9300A PXIe Frequency Reference - Datasheet c20141011 [10]


>> Download 5991-0898EN M9300A PXIe Frequency Reference - Datasheet c20141011 [10] documenatation <<

Text preview - extract from the document
Keysight Technologies
M9300A
PXIe Frequency Reference

      Data Sheet
Overview

    Product Description
    The Keysight Technologies, Inc. M9300A PXIe
    frequency reference is a PXIe compatible compact
    modular instrument that can be used as a 10 MHz
    or 100 MHz reference in various solutions. A single
    M9300A can be shared with up to four M9381A
    VSGs, as shown in Figure 1, or five M9380A CW
    sources to form a multi-channel solution in one
    compact chassis. It can also be used to generate a
    clean 100 MHz clock in wideband 2 and 4 channel
    hardware configurations, as shown in Figure 2.
                                                          Figure 1. One M9300A PXIe Frequency Reference can be shared with four
                                                          M9381A PXIe Vector Signal Generators in one chassis.
    Instrument control is provided through a soft front
    panel and programmatic interfaces tuned to your
    application development environment of choice.


    Product Features
