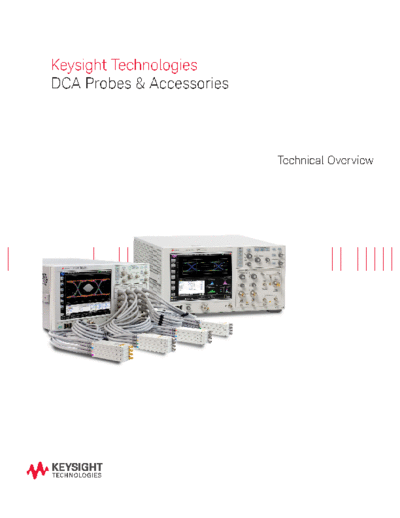

Image preview - the first page of the document
![5991-2340EN DCA Probes and Accessories - Technical Overview c20140807 [12]](/pics/5c4d6cad04cfa.gif)
>> Download 5991-2340EN DCA Probes and Accessories - Technical Overview c20140807 [12] documenatation <<
Text preview - extract from the document
Keysight Technologies
DCA Probes & Accessories
Technical Overview
02 | Keysight | DCA Probes & Accessories - Technical Overview
N1027A-45A Accessory Kit for Remote Head Modules
Kit consists of:
Quantity Part number Description
1 8710-1582 0.57 Nm (5 lb-in) torque wrench
2 N1027A-1PB Remote head brackets
2 11901C 2.4 mm male to 3.5 mm female adapter
2 N9398G 1.85 mm DC block
2 N5520A 1.85 mm male to male adapter
2 N5520B 1.85 mm female to female adapter
2 N1027A-1C1 1.85 mm cable
1 9300-1367 ESD wrist strap
1 9300-0980 ESD ground cord
1 N1027A-1AC Accessory case
Remote head brackets ESD wrist strap
(N1027A-1PB) (9300-1367)
ESD ground cord
(9300-0980)
1.85 mm male to male
10 cm coax cables, adapters (N5520A)
1.85 mm male to male
(N1027A-1C1)
1.85 mm female to female
adapters (N5520B)
2.4 male to 3.5 female
adapters (11901C) 1.85 mm DC blocks
(N9398G)
5 lb-in torque wrench (8710-1582)
Clock Recovery Phase Matching Cable Kits
N1027A-S32 kit
1x N1075-60013 9/125 um single-mode fiber, FC/PC, 5.3 m
2x N1075-60017 2.92 mm male-to-male coaxial cable, 1m1
N1027A-M14
1x N1075-60015 9/125 um single-mode fiber, FC/PC 7.1 m
1x N1075-60016 62.5/125 um multimode fiber, FC/PC, 6.0 m
2x N1075-60017 2.92 mm male-to-male coaxial cable, 1m1
1. To connect the N4877A recovered clock output to the 86100C/D trigger input and to connect the N4877A auxiliary output with an optional
86107A precision timebase.
03 | Keysight | DCA Probes & Accessories - Technical Overview
Adapters & Connector Savers
Description below specifies gender of adapter
N5520A 1.85 mm male to 1.85 mm male adapter/connector saver
N5520B 1.85 mm female to 1.85 mm female adapter/connector saver
N5520C 1.85 mm female to 1.85 mm male connector saver
11900B
11900A 2.4 mm male to 2.4 mm male adapter/connector saver
11900B 2.4 mm female to 2.4 mm female adapter/connector saver
11900C 2.4 mm female to 2.4 mm male connector saver
11901A 2.4 mm male to 3.5 mm male adapter 11901C
11901B 2.4 mm female to 3.5 female adapter
11901C 2.4 mm male to 3.5 mm female adapter
11901D 2.4 mm female to 3.5 mm male adapter
85130-60010 2.4 mm female to 3.5 mm male NMD bulkhead adapter
83059A 3.5 mm male to 3.5 mm male adapter/connector saver
83059B 3.5 mm female to 3.5 mm female adapter/connector saver
83059C 3.5 mm female to 3.5 mm male connector saver
85130-60010
5061-5311 3.5 mm female to 3.5 mm female adapter/connector saver 2.4 F -3.5 M
2.4 mm connectors are mechanically compatible with 1.85 mm.
2.92 mm connectors are mechanically compatible with 3.5 mm and SMA connectors.
Examples:
Use two 11901Cs to connect SMA cables to an N1045A-02F or 5061-5311
86108B-HBW or N4903B.
Use 5061-5311 as a connector saver for the 86112A, 54754A or
86105X electrical inputs.
DC Blocks, Phase Trimmers, Cables, Caps
N9398G 1.85 mm male-to-female DC block 16V 700 kHz - 67 GHz
N9398F 2.4 mm male-to-female DC block 16V 50 kHz- 50 GHz
N9398C 3.5 mm male-to-female DC block 16V 50 kHz - 26.5 GHz
N9398F
N1027A-PT2 2.4 mm male-to-female phase trimmer
N1027A-PT3 3.5 mm male-to-female phase trimmer
N1027A-1C1 1.85 mm coaxial male-to-male cable, 67 GHz, 10 cm
N4910A 2.4 mm male-to-male matched coaxial cable pair, 61 cm
N4871A 3.5 mm male-to-male matched coaxial cable pair, 91 cm
N1027A-1CF Shipping cap to protect 1.85/2.4 mm female inputs
N1027A-1CM Shipping cap to protect 1.85/2.4 mm male inputs
N4910A
2.4 mm connectors are mechanically compatible with 1.85 mm.
2.92 mm connectors are mechanically compatible with 3.5 mm and SMA connectors.
Examples:
The N1045A-04F requires four N1027A-1CF caps. N1027A-PT2
04 | Keysight | DCA Probes & Accessories - Technical Overview
Attenuators, Terminations
8493C-003 3.5 mm 3 dB attenuator
8493C-006 3.5 mm 6 dB attenuator
8493C-010 3.5 mm 10 dB attenuator 8493C
8493C-020 3.5 mm 20 dB attenuator
8490D-003 2.4 mm 3 dB attenuator
8490D-006 2.4 mm 6 dB attenuator
8490D-010 2.4 mm 10 dB attenuator
8490D-020 2.4 mm 20 dB attenuator 8490D
909D-011 3.5 mm female 50 Ohm load
909D-301 3.5 mm male 50 Ohm load 909D-011
85138A 2.4 mm male 50 Ohm load
85138B 2.4 mm female 50 Ohm load
85138A
85140A 2.4 mm male short
85140B 2.4 mm female short
85141A 2.4 mm male open
85140B
85141B 2.4 mm female open
Power Dividers, Splitters
11636B 3.5 mm power divider, DC to 26.5 GHz
11636C 2.4 mm power divider, DC to 50 GHz
11667B 3.5 mm power splitter, DC to 26.5 GHz
11667C 2.4 mm power splitter, DC to 50 GHz
05 | Keysight | DCA Probes & Accessories - Technical Overview
Storage
See also www.keysight.com/find/parts
N1000-40008 Front cover for 86100D1
N1027A-1AC Accessory case2
N1000-40008
N1027A-1MC Module storage case for N1045A module
N1027A-1CL Clip for N1045A cable management
N1027A-2CL Clip for two N1045A remote heads
86101-60017 Module filler panel for 86100A/B/C/D (1/4 bay width)3
86101-60016 Module filler panel for 86100A/B/C/D (1/2 bay width)3, 4
1. Does not fit 86100A/B/C mainframes.
2. Empty N1027A-45A case (see photo on page 2). N1027A-1CL N1027A-2CL
3. Use filler panels to ensure proper airflow through the inside of modules. Otherwise the
movement of air may be cut short, and components may overheat in hot environments.
4. While supplies last. Otherwise use two 86101-60017.
86101-60017
ESD Protection
86101-60016
N9355CK01 3.5 mm DC coupled limiter
9300-1308 ESD heel strap
9300-1367 ESD wrist strap
9300-0980 ESD ground cord
9300-1484 ESD desk mat
Rackmount Kits, Tools
1CM030A Rackmount kit for 86100A/B/C
1CP018A Rackmount kit with handles for 86100A/B/C
1CM015A Rackmount kit for 86100D
1CP020A Rackmount kit with handles for 86100D
8710-1582 0.57 nm (5 lbs-in) torque wrench1
8710-1765 0.9 nm (8 lbs-in) torque wrench2
8710-1764 0.9 nm (8 lbs-in) torque wrench3
5061-5311
Bulkhead
Connector saver
1. Recommended for 1.85/2.4 mm DCA connectors (e.g. N1045A, 86116C, 86118A).
2. Recommended for 3.5 mm DCA connectors (e.g. 54754A, 86105x, 86112A).
3. Recommended for DCA bulkheads (e.g. 86100x trigger input, 54754A, 86105x, 86112A).
06 | Keysight | DCA Probes & Accessories - Technical Overview
InfiniiMax III - 30 GHz Probing System Overview
Probe amps
