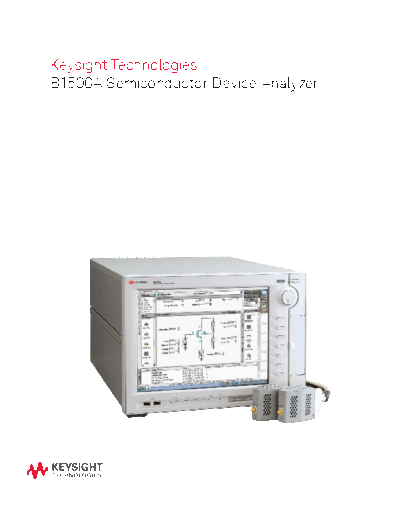

Image preview - the first page of the document



>> Download 5991-2443EN B1500A Semiconductor Device Analyzer - Brochure c20141030 [16] documenatation <<

Text preview - extract from the document

Keysight Technologies
B1500A Semiconductor Device Analyzer
Accelerate Fundamental Current-Voltage, Capacitance and
Advanced Ultra-Fast IV Device Characterization
                                             A single-box solution that covers all
                                             of your device characterization needs
                                             The B1500A Semiconductor Device               Keysight Technologies, Inc. EasyEX-
                                             Analyzer integrates multiple measure-         PERT, resident GUI-based software
                                             ment and analysis capabilities for accu-      running on the B1500A's embedded
                                             rate and quick device characterization        Windows 7 platform, supports eficient
                                             into a single instrument. It is the only      and repeatable device characterization.
                                             parameter analyzer with the versatility       Furnished with hundreds of ready-to-
                                             to provide both a wide range of device        use measurements (application tests),
                                             characterization capabilities along with      the B1500A provides an intuitive and
                                             uncompromised measurement reliability         powerful environment for test execu-
                                             and repeatability. It supports all aspects    tion and analysis. It facilitates the
                                             of measurement, from fundamental              accurate and fast electrical charac-
                                             current-voltage (IV) and capacitance-         terization and evaluation of devices,
                                             voltage (CV) characterization up to           materials, semiconductors, active/pas-
                                             state-of the-art fast pulsed IV testing. In   sive components, or virtually any other
                                             addition, the B1500A's ten-slot modular       type of electronic device.
                                             architecture allows you to add or
                                             upgrade measurement modules if your
                                             measurement needs change over time.




IV measurement

                                          Capacitance measurement



                                                                                       Pulsed IV measurement

Key Features                                    Beneits
Precision voltage and current measurement
