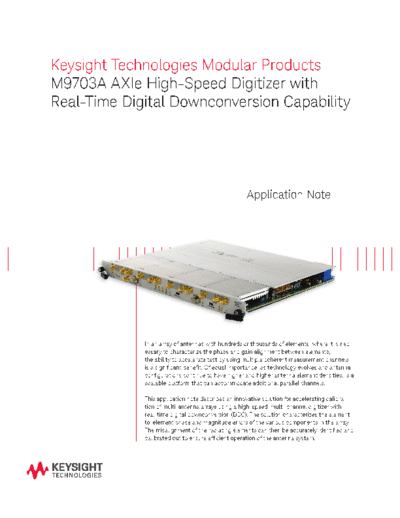

Image preview - the first page of the document



>> Download 5991-2543EN M9703A AXIe High-Speed Digitizer with Real-Time Digital Downconversion Capability - Application Note c20140915 [27] documenatation <<

Text preview - extract from the document

Keysight Technologies Modular Products
M9703A AXIe High-Speed Digitizer with
Real-Time Digital Downconversion Capability




                                                    Application Note




             In an array of antennas with hundreds or thousands of elements, where it is nec-
             essary to characterize the phase and gain alignment between elements,
             the ability to accelerate test by using multiple coherent measurement channels
             is a significant benefit. Of equal importance, as technology evolves and antenna
             configurations continue to have higher and higher antenna element densities, is a
             scalable platform that can accommodate additional parallel channels.

             This application note describes an innovative solution for accelerating calibra-
             tion of multi-antenna arrays using a high-speed, multi-channel digitizer with
             real-time digital downconversion (DDC). The solution characterizes the element-
             to-element phase and magnitude errors of the various components in the array.
             The misalignment of the radiating elements can then be accurately identified and
             calibrated out to ensure efficient operation of the antenna system.
Introduction

     This application note describes how to use the Key-
                                                             Your Benefits
     sight Technologies, Inc. M9703A AXIe high-speed
     digitizer with real-time digital downconversion (DDC)
