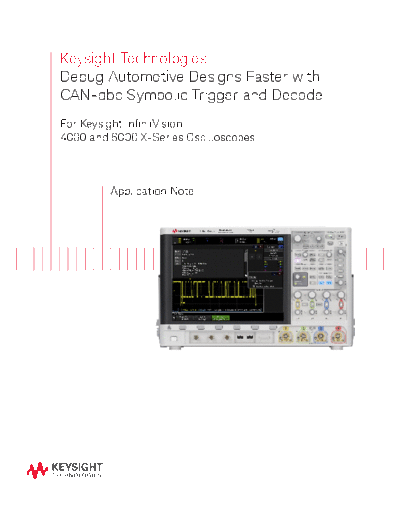

Keysight Technologies
Debug Automotive Designs Faster with
CAN-dbc Symbolic Trigger and Decode
For Keysight InfiniiVision
4000 and 6000 X-Series Oscilloscopes



         Application Note
Introduction

     The differential Controller Area Network (CAN) bus is used extensively in all of today's automobiles
     for drive-train and body control. This protocol was developed by Bosch more than 30 years ago, and
     it is still considered the "workhorse" serial control bus of the automobile. The CAN bus has also been
     heavily adopted for industrial and medical equipment control applications.

     The oscilloscope is the primary measurement tool used today to test and debug the physical layer
     of this serial bus. Although CAN bus protocol analyzers, such as Vector's CANanalyzer, are also
     commonly used for testing and debugging at a higher-abstraction application level, the advantage of
     an oscilloscope is that it provides you with the ability to monitor the analog quality (signal integrity)
     of the physical layer of the CAN bus. The electrical environment in automobiles is naturally harsh
     with lots of noise and often unexpected transients. The core competence of an oscilloscope is that it
     can capture and show you details of those infrequent automotive transients and noise that could be
     producing CAN bus errors.

     This application note will begin by showing the difference between oscilloscope hexadecimal triggering
     and decode versus CAN-dbc symbolic triggering and decode of a CAN differential bus. We will then
     provide some background on the core element required to symbolically decode the CAN bus, which
     is an industry-standard .dbc file. In addition, we will provide step-by-step instructions on how to
     perform CAN symbolic-level triggering and decode using a Keysight Technologies, Inc. 4000 and 6000
     X-Series oscilloscope. CAN-dbc symbolic triggering and decode is standard with the DSOX4AUTO
     and DSOX6AUTO CAN/LIN options.
