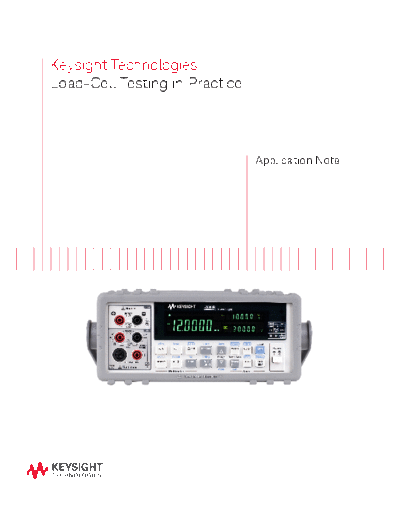

Image preview - the first page of the document
![5991-3082EN Load-Cell Testing in Practice - Application Note c20140919 [5]](/pics/5c4a88b04d90c.gif)
>> Download 5991-3082EN Load-Cell Testing in Practice - Application Note c20140919 [5] documenatation <<
Text preview - extract from the document
Keysight Technologies
Load-Cell Testing in Practice
Application Note
What is a Load-Cell?
A load-cell is a device that is used to measure high compression, tensile force, high pressure, and weight. Load-cells
take many forms in order to accommodate a variety of uses in research and industry applications. Most current
designs use a strain gauge as the sensing element because it is able to measure tension, compression, and
shear forces.
Weight force
Loading plate
Cushion bumper
Load cell
(aluminum cavity)
Cushion bumper
Base plate
Wheatstone bridge
R1 R4
R1 ~ R4: VO = 2 mV/V typical
+ VEX VO Strain gauges
