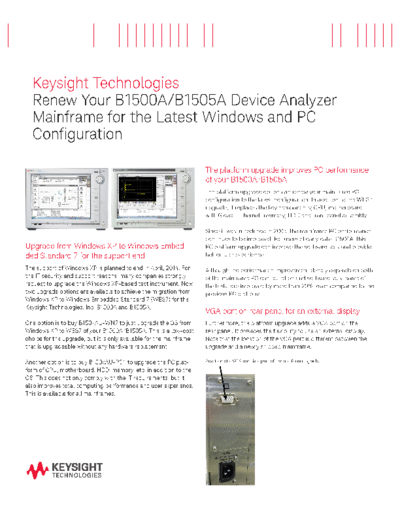

Image preview - the first page of the document
![5991-3327EN English _ 2013-10-03 _ PDF 783 KB c20141001 [2]](/pics/5c4d6ccb4737a.gif)
>> Download 5991-3327EN English _ 2013-10-03 _ PDF 783 KB c20141001 [2] documenatation <<
Text preview - extract from the document
Keysight Technologies
Renew Your B1500A/B1505A Device Analyzer
Mainframe for the Latest Windows and PC
Configuration
The platform upgrade improves PC performance
of your B1500A/B1505A
The platform upgrade option can renew your mainframe PC
configuration to the latest configuration. In addition to the WES7
upgrade, it replaces the key components; CPU, motherboard
with Gigabit Ethernet, memory, HDD and front panel assembly.
Since it was introduced in 2005, the mainframe PC performance
continues to be improved. For users of early date B1500A, this
Upgrade from Windows XP to Windows Embed- PC platform upgrade can improve the software task and provide
ded Standard 7 for the support end better user experience.
The support of Windows XP is planned to end in April, 2014. For Although the performance improvement deeply depends on both
the IT security and support reasons, many companies strongly of the mainframe PC configuration and software task, some of
request to upgrade the Windows XP-based test instrument. Now the tasks are improved by more than 20%, even comparing to the
two upgrade options are available to achieve the migration from previous PC platform.
Windows XP to Windows Embedded Standard 7 (WES7) for the
Keysight Technologies, Inc. B1500A and B1505A.
VGA port on rear panel for an external display
One option is to buy B150xAU-WN7 to just upgrade the OS from Furthermore, the platform upgrade adds a VGA port on the
Windows XP to WES7 of your B1500A/B1505A. This is a low-cost rear panel. It provides the flexibility to use an external display.
choice for the upgrade, but it is only available for the mainframe Note that the location of the VGA port is different between the
that is upgradeable without any hardware replacement. upgrade and a newly shipped mainframe.
Another option is to buy B150xAU-PC1 to upgrade the PC plat- Addition of a VGA port is a part of the platform upgrade.
form of CPU, motherboard, HDD, memory, etc. in addition to the
OS. This does not only comply with the IT requirements, but it
also improves total computing performance and user experience.
This is available for all mainframes.
| Keysight | Renew Your B1500A/B1505A Device Analyzer Mainframe for the Latest Windows and PC Configuration - Technical Overview
Ordering Information
For more information on Keysight
Technologies' products, applications or
Upgrade option B1500A B1505A services, please contact your local Keysight
Semiconductor device analyzer Power device analyzer/ office. The complete list is available at:
curve tracer www.keysight.com/find/contactus
Serial number XX10000000 to XX49090101 to All
(Prefix XX is JP, MY or SG) XX49090000 XX53289999 Americas
B1500AU-WN7/ Not available Install Windows Embedded Standard 7 Canada (877) 894 4414
B1505AU-WN7 Brazil 55 11 3351 7010
Mexico 001 800 254 2440
(OS upgrade)
United States (800) 829 4444
