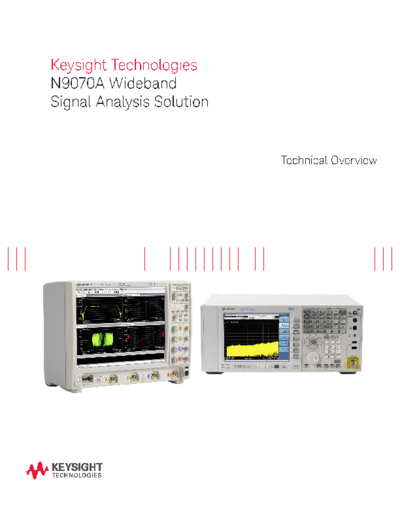

Image preview - the first page of the document



>> Download 5991-3919EN N9070A Wideband Signal Analysis Solution - Technical Overview c20140806 [8] documenatation <<

Text preview - extract from the document

Keysight Technologies
N9070A Wideband
Signal Analysis Solution


                           Technical Overview
   Introduction
         Wideband commercial, satellite or radar signals can now be analyzed with commercial test equipment at a fraction of the
         cost and measurement time of traditional solutions using the N9070A wideband signal analysis solution. The Keysight
         Technologies, Inc. N9070A consists of Keysight's N9030A PXA signal analyzer, combined with an Infiniium DSO9204H
         oscilloscope and 89600 VSA software, orderable as N9070A-001.

         The N9070A takes advantage of the PXA's wide IF output, the high dynamic range of the Infiniium oscilloscope, and the
         powerful 89600 VSA to deliver a wideband high-dynamic range signal analysis solution at an affordable price. This solu-
         tion does not require a stimulus, the correction data is exported from the PXA to the 89600 VSA so the user does not need
         to do time consuming calibrations for acceptable measurement results. Correction data is quickly loaded when the user
         changes center frequency and span, and the full analysis capability of the 89600 VSA can then be taken advantage of. The
         corrections contain both amplitude and phase, which enables the 89600 VSA to make accurate wideband measurements
         such as analysis of chirp linearity, demodulation of cellular, emerging, or custom modulation formats.
