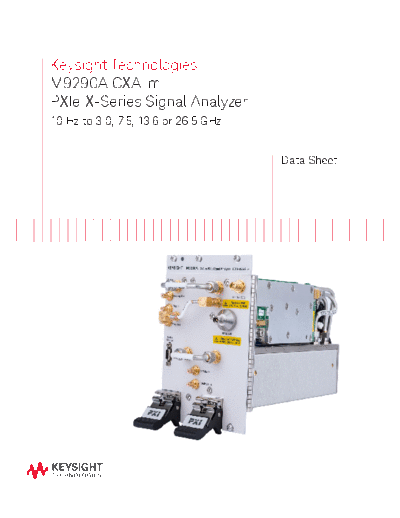

Image preview - the first page of the document
>> Download 5992-0032EN M9290A CXA-m Signal Analyzer Data Sheet c20141118 [17] documenatation <<Text preview - extract from the documentKeysight Technologies
M9290A CXA-m
PXIe X-Series Signal Analyzer
10 Hz to 3.0, 7.5, 13.6 or 26.5 GHz
Data Sheet
Table of Contents
Technical Specifications ...................................................................3
Definitions and conditions........................................................3 Deploy a smaller
Recommended best practices in use ......................................3
microwave footprint
Frequency and Time Specifications .........................................4 In test system development, one
Amplitude Accuracy and Range Specifications ......................6 of your crucial requirements is
doing more in less space--but this
Dynamic Range Specifications ................................................9 often means tradeoffs between
footprint and precision in signal
PowerSuite Measurement Specifications .............................. 12 analysis. That is, until now: we've
General Specifications ........................................................... 13 expanded the Keysight X-Series
with the CXA-m, a PXIe signal
Inputs and Outputs................................................................. 13 analyzer that offers fully specified
performance up to 26.5 GHz. It
I/Q Analyzer ............................................................................ 14 lets you handle RF and microwave
System Requirements ............................................................ 14 signals in four slots, and you
can leverage your existing code.
Software ......................................................................................... 15 Choose the CXA-m and deploy a
smaller microwave footprint.
Related Literature ........................................................................... 16
03 | Keysight | M9290A CXA-m PXIe X-Series Signal Analyzer - Data Sheet
Technical Specifications
Get more information
Definitions and conditions
Temperatures referred to in this document are defined as follows: This CXA-m PXIe X-Series
