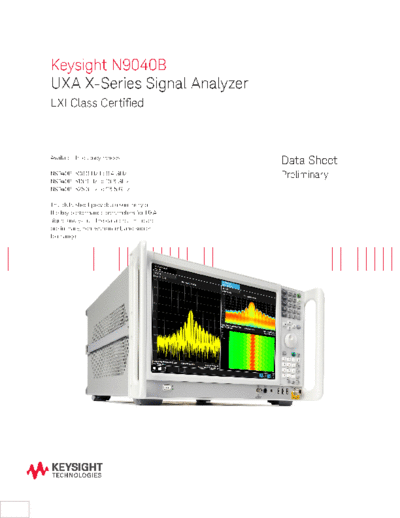

Image preview - the first page of the document
>> Download 5992-0090EN N9040B UXA X-Series Signal Analyzer - Data Sheet c20141002 [23] documenatation <<Text preview - extract from the documentKeysight N9040B
UXA X-Series Signal Analyzer
LXI Class Certified
Available frequency ranges
Data Sheet
N9040B-508 3 Hz to 8.4 GHz Preliminary
N9040B-513 3 Hz to 13.6 GHz
N9040B-526 3 Hz to 26.5 GHz
This data sheet provides a summary of
the key performance parameters for UXA
signal analyzers. The data presented are
preliminary, non-warranted, and subject
to change.
02 | Keysight | UXA X-Series Signal Analyzer N9040B - Data Sheet (Preliminary)
Table of Contents
Frequency and Time Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Amplitude Accuracy and Range Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Dynamic Range Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Inputs and Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Other Optional Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
I/Q Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
I/Q Analyzer - Option B25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
I/Q Analyzer - Option B40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
I/Q Analyzer - Option B2X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
I/Q Analyzer - Option B5X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Real-time Spectrum Analyzer (RTSA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Related Literature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
03 | Keysight | UXA X-Series Signal Analyzer N9040B - Data Sheet (Preliminary)
Frequency and Time Specifications
Frequency range DC coupled AC coupled
Option 508 3 Hz to 8.4 GHz 10 MHz to 8.4 GHz
Option 513 3 Hz to 13.6 GHz 10 MHz to 13.6 GHz
Option 526 3 Hz to 26.5 GHz 10 MHz to 26.5 GHz
Frequency band LO multiple (N) Frequency range
0 1 3 Hz to 3.6 GHz
1 1 3.5 to 8.4 GHz
2 2 8.3 to 13.6 GHz
3 2 13.5 to 17.1 GHz
4 4 17 to 26.5 GHz
Frequency reference
Accuracy
