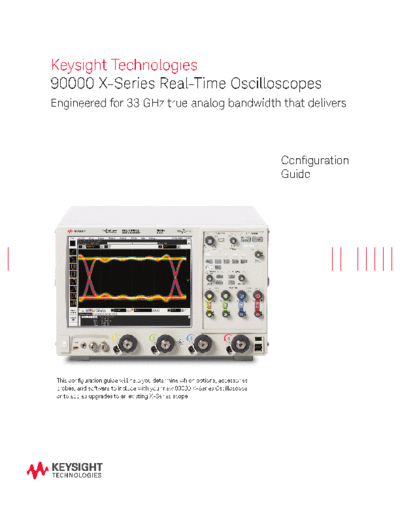

Keysight Technologies
90000 X-Series Real-Time Oscilloscopes
Engineered for 33 GHz true analog bandwidth that delivers



                                                                                Configuration
                                                                                Guide




 This configuration guide will help you determine which options, accessories,
 probes, and software to include with your new 90000 X-Series Oscilloscope,
 or to add as upgrades to an existing X-Series scope.
02 | Keysight | 90000 X-Series Real-Time Oscilloscopes - Configuration Guide



Engineered for 33 GHz true analog bandwidth that delivers
Configure your high performance real-time oscilloscope solution today
This step-by-step process will help                               Bandwidth      Analysis Package               Model Number
you configure your 90000 X-Series
Oscilloscope. Capabilities that are listed                                                                      DSOX91304A
                                                                                  Digital Signal Oscilloscope
as standard come with the instrument at
no additional charge. Use option numbers
when ordering at the time of purchase. Use                              13 GHz    Digital Signal Analyzer       DSAX91304A
model numbers to add to an existing scope.
For detailed specifications, refer to the
90000 X-Series data sheet (5990-5271EN).                                          Mixed Signal Oscilloscope     MSOX91304A


                                                                                  Digital Signal Oscilloscope   DSOX91604A

                                                                        16 GHz    Digital Signal Analyzer       DSAX91604A


                                                                                  Mixed Signal Oscilloscope     MSOX91604A


                                                                                  Digital Signal Oscilloscope   DSOX92004A

                                                                        20 GHz    Digital Signal Analyzer       DSAX92004A


                                                                                  Mixed Signal Oscilloscope     MSOX92004A


                                                                                  Digital Signal Oscilloscope   DSOX92504A

                                                                       25 GHz     Digital Signal Analyzer       DSAX92504A


                                                                                  Mixed Signal Oscilloscope     MSOX92504A


                                                                                  Digital Signal Oscilloscope   DSOX92804A
