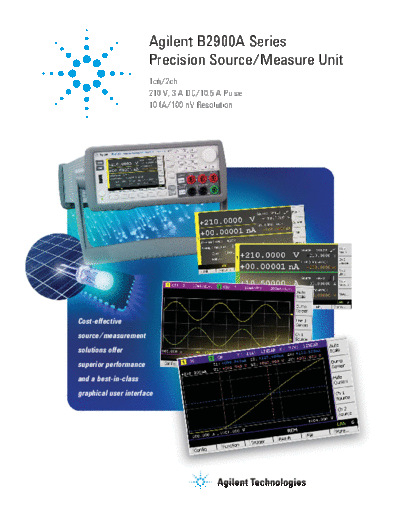

Image preview - the first page of the document
B2900A Series Precision Source Measure Unit Product - Brochure 5990-7515EN c20130425 [16]


>> Download B2900A Series Precision Source Measure Unit Product - Brochure 5990-7515EN c20130425 [16] documenatation <<

Text preview - extract from the document
                       Agilent B2900A Series
                       Precision Source/Measure Unit
                       1ch/2ch
                       210 V, 3 A DC/10.5 A Pulse
                       10 fA/100 nV Resolution




Cost-effective
source/measurement
solutions offer
superior performance
and a best-in-class
graphical user interface
Innovative SMU provides superior performance
and rapid measurement results



Single view




                                                                   Dual view




The Agilent B2900A Series of Precision Source/     possess a superior color LCD graphical
Measure Units are compact and cost-effective       user interface (GUI). In addition, several
bench-top Source/Measure Units (SMUs) with         task-based viewing modes dramatically
the capability to source and measure both          improve productivity for test, debug
voltage and current. These capabilities make       and characterization.                                   Roll view
the B2900A Series ideal for a wide variety of IV
(current versus voltage) measurement tasks that    The Agilent B2900A Series offers unmatched
require both high resolution and accuracy.         measurement throughput and supports conven-             B2912A, differentiated through their available
                                                   tional SMU SCPI commands for easy test code             features (number of digits displayed, measure-
The Agilent B2900A Series of SMUs provide          migration. These features improve efficiency and        ment resolution, minimum timing interval,
best-in-class performance for a modest price.      lower the cost of ownership when integrating            supported viewing modes, etc.) and by the
They have broad voltage (
