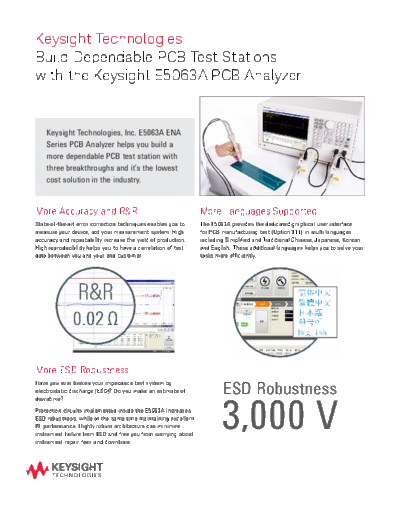

>> Download Build Dependable PCB Test Stations with the Keysight E5063A PCB Analyzer - Flyer 5991-3796EN c20141009 [2] documenatation <<

Text preview - extract from the document

Keysight Technologies
Build Dependable PCB Test Stations
with the Keysight E5063A PCB Analyzer


    Keysight Technologies, Inc. E5063A ENA
    Series PCB Analyzer helps you build a
    more dependable PCB test station with
    three breakthroughs and it's the lowest
    cost solution in the industry.


More Accuracy and R&R                                          More Languages Supported
State-of-the-art error correction techniques enables you to    The E5063A provides the dedicated graphical user interface
measure your device, not your measurement system. High         for PCB manufacturing test (Option 011) in multi languages
accuracy and repeatability increase the yield of production.   including Simplified and Traditional Chinese, Japanese, Korean
High reproducibility helps you to have a correlation of test   and English. These additional languages helps you to solve your
data between you and your end customer.                        tasks more efficiently.




More ESD Robustness

                                                                       ESD Robustness
Have you ever broken your impedance test system by




                                                                       3,000 V
electrostatic discharge (ESD)? Do you make an estimate of
downtime?
Protection circuits implemented inside the E5063A increases
ESD robustness, while at the same time maintaining excellent
RF performance. Highly robust architecture can minimize
instrument failure from ESD and free you from worrying about
instrument repair fees and downtime.
Key Features & Specifications                                     E5063A-011 Time domain analysis/Test Wizard
