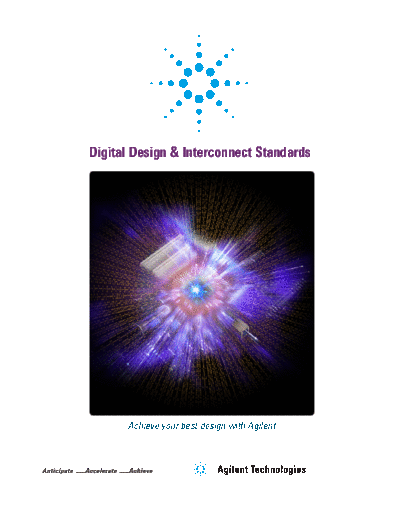

Image preview - the first page of the document
Digital Design & Interconnect Standards - Brochure 5990-5438EN c20140221 [16]


>> Download Digital Design & Interconnect Standards - Brochure 5990-5438EN c20140221 [16] documenatation <<

Text preview - extract from the document
Digital Design & Interconnect Standards




      Achieve your best design with Agilent
                 Introduction

When digital signals        tools provide views into       our solution set includes
reach gigabit speeds,       the time and frequency         software and instru-
"the unpredictable"         domains, revealing             mentation that spans
becomes normal. In          underlying problems and        the entire design cycle:
digital standards, every    ensuring your designs          design and simulation;
generational change puts    meet specifications.           analysis; debug; and com-
new risks in your path.                                    pliance testing. These
We see it firsthand when    With Agilent, you'll be        same tools are essential
creating our products and   equipped to achieve your       to signal integrity (SI)
working with engineers      best design, on time and       analysis, whether you
like you. The process of    to budget. By sharing          perform it independently
getting your project back   our latest experiences,        or as a tightly interwoven
on track starts with the    we can help anticipate         part of the digital design
best tools for the job.     challenges and accelerate      process.
                            your ability to create prod-
Agilent's solution set      ucts you'll be proud of.
for high-speed digital
test is a combination       From initial concept
of instrumentation and      to compliance testing,
broad expertise built on    Agilent can help you
our ongoing involvement     uncover problems, opti-
with industry experts.      mize performance and
Agilent's tools for mea-    deliver your design
surement and simulation     on time. In the
will help you cut through   development
the challenges of gigabit   of high-speed
digital designs. These      digital designs,




www.agilent.com/find/HSD

                                         2
 Design and Simulation

Count on Agilent to help you through         To help pinpoint problems, ADS           ADS supports your whole development
to a complete gigabit design. Our deep       provides integrated simulation and       flow, from early data-link engineering
expertise in this area is built into our     data displays. These include the ADS     through the pre-layout and post-layout
Advanced Design System (ADS) soft-           Stereoscopic Viewer, which provides      stages. You can import post-layout
ware and its capabilities that model         greater insight into electromagnetic     artwork from constraint-based enter-
RF and microwave effects quickly             (EM) simulation results by leveraging    prise tools such as Cadence Allegro,
and accurately. You can use ADS              NVIDIA 3D Vision hardware. For the       Mentor1 Expedition and Zuken
and the Agilent physical layer test          visualization of channel- or circuit-    CR5000. Using ADS Momentum, you
system (PLTS) software to solve tough        simulation results, ADS also includes    can create an EM model of your criti-
modeling problems such as long, lossy        eye-diagram, mask and bit error rate-    cal net and power delivery network
interconnects or crosstalk in densely        contour displays.                        (PDN) artwork for use in both the
packed interconnects. Furthermore,                                                    frequency and time domains. For
both vector network analyzer (VNA)           The ADS Channel Simulator produces       power integrity analysis in the time
and time domain reflectometry (TDR)          ultralow BER contours in seconds--       domain, ADS supports hybrid convolu-
measurements can be easily calibrated        not days--by applying state-of-the-art   tion that accurately accounts for the
and controlled by the PLTS software.         statistical analysis techniques that     low frequency PDN impedance changes
                                             include a unique treatment of trans-     from the decoupling capacitors.
ADS provides an integrated workflow          mitter jitter modeling that correlates
that unites system, circuit and              closely with measured data. Channel
physical-level design and simulation.        Simulator supports not only built-in
One important benefit of this tight          generic models but also IC models
integration is the elimination of time-      conforming to the IBIS AMI industry
consuming and error-prone transfers          standard.
between single-function tools.

With ADS, you can work where you're                           High Speed Digital Design Flow
most comfortable: work in the time or
frequency domain, or straddle both, to
suit each task, component or problem.
Straddling the domains is an effective
way to debug stubborn problems. For
example, mode-conversion analysis
in the PLTS software helps pinpoint
crosstalk problems in high-speed inter-
connects, and multi-domain analysis
will help you locate physical layer
problems in high speed channels.


Mentor Graphics is a trademark of Mentor
Graphics Corporation in the U.S. and other
countries.




                                                               3
                           Analyze and Debug

With our high-speed digital solution        Real world measurements reveal            When viewing your measurements
set, you can estimate system                performance parameters that can help      and test results, PLTS lets you
performance with models of devices          you identify critical components within   easily switch between the time and
and structures before your hardware         a specific budget. Measurements           frequency domains--whichever
is designed or returned from the fab        also help you validate or refine          you prefer, and whichever is most
shop. Use proxy devices to estimate         assumptions in your simulations and       informative for the problem under
component behavior, and vary device         enable correlation of model results       consideration. You can optimize
parameters to account for process           with actual tests. To create consistent   your analysis by performing PLTS
variation, temperature drift, humidity      data sets, you can correlate data in      data correlation in either the time
effects, and more. To help maximize         the time, frequency and simulation        or frequency domain. Furthermore,
design margins, you can assess a            domains. For even greater visibility,     you can now create your own de-
system's segmented performance at           you can use simulation to interpolate     embed models while removing fixture
IC pins, interface connectors, back-        and extrapolate waveforms in              effects using a new technique called
planes and elsewhere. Collectively,         locations measurements can't reach.       automatic fixture removal (AFR).
these capabilities can help you predict     To provide greater confidence in
and optimize yields.                        actual VNA and TDR measurements,
ADS lets you build a foundation             the PLTS software includes advanced
for deeper understanding through            calibration wizards that will help you
detailed models of the target system.       avoid costly calibration errors. For
You can then use measurement data           greater test flexibility you can also
to validate simulations with actual         mix and match coaxial and probe
measurements made on the accessible         calibration kits with a single device
ports of a physical prototype. With         under test (DUT). The probe calibration
Agilent's measurement tools, you have       wizard will automatically download
access to a wide range of physical          de-embed models for the probes used
parameters: oscilloscopes offering          within probing stations.
advanced measurement applications,
logic analyzers, bit error ratio testers,
vector network analyzers providing
optional time domain reflectometry
capability, and more.




 www.agilent.com/find/HSD

                                                               4
 Compliance

In compliance, gain confidence by
tapping into Agilent's expertise as
an active participant in the relevant
standards bodies. Our solutions
include compliance tests certified by
the governing bodies responsible for
numerous interfaces. What's more,
these are the same instruments
used by independent test labs--so
you can trust your results. Obtain
greater accuracy by removing channel
artifacts. Change the measurement
parameters to learn sensitivities
and distributions, and to understand
marginal performance. Maximize
design margins by correlating
measurement results in the time and
frequency domains.
Our instruments include capabilities
such as the intuitive creation of
mask templates, which accelerates
the creation of pass/fail criteria
for interconnects. Specialized test
suites for high-speed protocols help
you make an efficient transition
from prototype to production. Our
use of familiar nomenclature and
features enables faster throughput in
manufacturing test.
You can begin compliance testing
before committing the first prototype
with the ADS Compliance Design
Kits, which are free add-ons that
cover standards such as DDR2 and
DDR3. The design kits can easily be
customized to other protocols and
standards using industry-standard
tools such as Excel, XML and C++.




                                        5
                           Signal Integrity

At this stage of the life cycle it can
also be useful to address underlying
SI issues. Save time and reduce
costs with SI-specific solutions
such as InfiniiSim for Agilent
Infiniium oscilloscopes. Also take
your measurement science further
and increase your design margins
by utilizing Agilent's exclusive
PrecisionProbe software.
Whether you handle SI analysis as
an independent topic or a deeply
interwoven part of digital design,
Agilent offers today's most powerful
range of SI tools. Leverage your
own multi-domain expertise through
solutions that provide complete
characterization in the time, frequency
and simulation domains. Solve
your toughest problems--in a new
standard or a new product--with
advanced toolsets such as our SI
portfolio for high-speed digital design.
If your organization has a dedicated
SI lab, enhance its capabilities with
product platforms that are designed to
support the latest design, simulation
and measurement technologies.
We're constantly leveraging our work
with SI thought leaders, industry
standards committees and our own
design experts to evolve and improve
the measurement and simulation
capabilities in our solutions.




 www.agilent.com/find/HSD

                                           6
 Solution Map
The table below shows our product solutions. They are each described in more detail with links
to the appropriate web pages on www.agilent.com.


                       Design and                                                       Signal
                       Simulation      Analysis       Debug         Compliance         Integrity   See Page
ADS, EMPro and
SystemVue                                                                                             8

N1930B PLTS
Software                                                                                              9

PNA-X Network
Analyzer
                                                                                                      10

ENA Option TDR
                                                                                                      10

86100 DCA Sampling
Oscilloscopes
                                                                                                      11

Infiniium 90000
Series Oscilloscopes
                                                                                                      11

Compliance
Software                                                                                              12

Logic Analyzers
                                                                                                      13

Protocol Analyzers/
Exercisers
                                                                                                      14

J-BERT & ParBERT
                                                                                                      15




                                                            7
                         Product Descriptions
                                           Design and                                                         Signal
                                           Simulation       Analysis        Debug        Compliance          Integrity



Advanced Design System (ADS)             EMPro + FEM                              SystemVue AMI
ADS Core, Transient Convolution,         Bundle with FDTD Simulator Element       Modeling Kit (W1714)
Layout, Momentum G2 bundled              (W2402B and W2405)
(W2211)                                                                           SystemVue AMI Modeling Kit (W1714)
                                          Generate high-frequency S-parameter     lets you build industry-standard
ADS is unique in its integration of      models of arbitrary 3D shapes such as    IBIS AMI SERDES models from the
accurate channel, circuit, and EM        connectors in Agilent electromagnetic    optimized data flow block diagram
simulators. This ensures that you get    professional (EMPro) with the finite     of the signal processing architecture
the right answers--and get them          element model (FEM) and finite           without laborious and error prone
faster by avoiding data transfers        difference time domain (FDTD)            hand-coding. Once the signal
between point tools.                     simulators. The parameterized models     processing is optimized, building the
                                         can then be included in an ADS           AMI model is a one-click operation,
