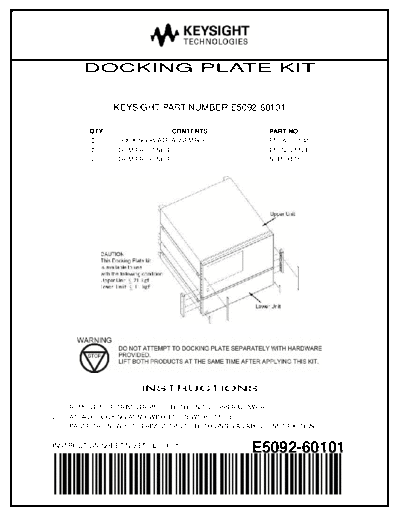

E5092-90001 E5092A Docking Plate Kit Instruction c20141011 [172]


>> Download E5092-90001 E5092A Docking Plate Kit Instruction c20141011 [172] documenatation <<

Text preview - extract from the document
        DOCKING PLATE KIT


                 KEYSIGHT PART NUMBER E5092-60101

          QTY.                  CONTENTS                                     PART NO.
          2...   DOCKING PLATE ASSEMBLY..........................            E5092-60102
          2...   TRIM-FR FR SIDE..........................................   E5052-25121
          2...   TRIM-FR FR SIDE..........................................   5041-9174




                          INSTRUCTIONS

1.   REMOVE SIDE TRIM STRIPS OF BOTH UNITS (UPPER&LOWER).
2.   ATTACH DOCKING ASS'Y WITH 4 SCREWS PER SIDE.
3.   PASTE THE NEW SIDE TRIM STRIPS TO BOTH UNITS AS ABOVE INSTRUCTION.

INSTRUCTION SHEET NO.E5092-90001
                                                                     E5092-60101
