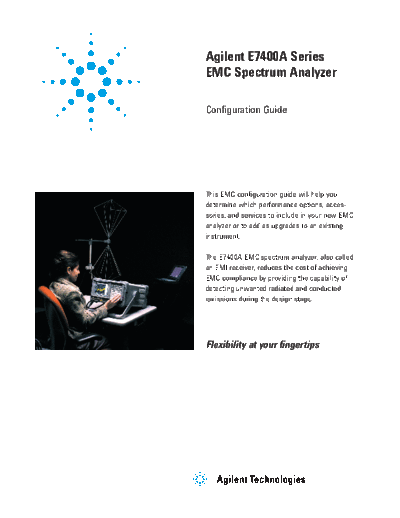

Agilent E7400A Series
EMC Spectrum Analyzer

Configuration Guide




This EMC configuration guide will help you
determine which performance options, acces-
sories, and services to include in your new EMC
analyzer or to add as upgrades to an existing
instrument.

The E7400A EMC spectrum analyzer, also called
an EMI receiver, reduces the cost of achieving
EMC compliance by providing the capability of
detecting unwanted radiated and conducted
emissions during the design stage.




Flexibility at your fingertips
Agilent EMC Spectrum Analyzer
This step-by-step process will help you configure your EMC
spectrum analyzer. Capabilities that are listed as standard
come with the instrument at no additional charge. Tailor
the performance, exterior, and service packages to meet
your requirements.

The EMC spectrum analyzer is available in one of two
express configurations: standard analyzer STD or STG.
The express analyzers offer configurations that are typically
ordered together to help speed instrument delivery.


Table of contents:

EMC Standard Express Spectrum Analyzer (STD/STG) ..........3
EMC Accessory, Calibration, and Warranty Options .................4
EMC Upgrade Options ........................................................................5
Related Literature .................................................................................6




                                                                                                        2
EMC Standard Express Spectrum Analyzer (STD/STG)

     Step 1. Select your frequency range
     Description                                             EMC model number1
     Frequency range, 9 kHz to 3.6 GHz                       E7402A4
                                                             E7402A-STD or
                                                             E7402A-STG (STD plus 3 GHz tracking generator)
     Frequency range, 9 kHz to 26.5 GHz                      E7405A4
                                                             E7405A-STD or
                                                             E7405A-STG (STD plus 3 GHz tracking generator)



     Step 1a. Included options at no additional charge
     Description                                             Option number
     GPIB Connection                                         Option A4H2
     Fast time domain sweep; IF, sweep, and video            Option AYX2
     output ports
     Low frequency extension to 100 Hz                       Option UKB
     Low emissions shielding                                 Option 060
     Narrow resolution bandwidths                            Option 1DR
     Preamplifier                                            Option 1DS
                                                             10 MHz to 3 GHz
     High-stability frequency reference (reduces frequency   Option 1D5
     drift, resulting in more accurate measurements)         Aging rate:
