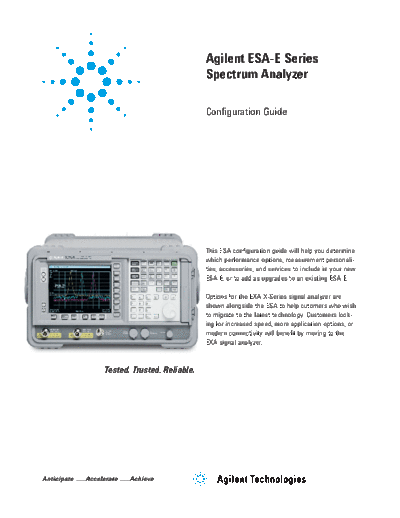

Image preview - the first page of the document



>> Download ESA-E Series Spectrum Analyzer - Configuration Guide 5989-9953EN c20140211 [12] documenatation <<

Text preview - extract from the document

                             Agilent ESA-E Series
                             Spectrum Analyzer

                             Configuration Guide




                             This ESA configuration guide will help you determine
                             which performance options, measurement personali-
                             ties, accessories, and services to include in your new
                             ESA-E, or to add as upgrades to an existing ESA-E.

                             Options for the EXA X-Series signal analyzer are
                             shown alongside the ESA to help cutomers who wish
                             to migrate to the latest technology. Customers look-
                             ing for increased speed, more application options, or
                             modern connectivity will benefit by moving to the
                             EXA signal analyzer.


Tested. Trusted. Reliable.
Agilent ESA-E Spectrum Analyzer
This step-by-step guide will help you configure your ESA-E.
Capabilities that are listed as standard come with the
instrument at no additional charge. Tailor the performance,
exterior, and service packages to meet your requirements.

The ESA-E spectrum analyzer is available in three express
configurations: standard (STD/STG) or communications
test (COM). The express analyzers offer faster delivery by
limiting the number of options that can be ordered together.
The custom configuration allows for maximum flexibility
in ordering the analyzer that best meets your needs by
offering all of the ESA-E options; however, it increases the
delivery timeframe.

For detailed specifications, refer to the ESA-E Spectrum
Analyzer specification guide (E4401-90490). For a summary
of specifications, refer to the ESA-E data sheet, literature
number 5989-9815EN.


Table of contents:

ESA-E Custom Configuration ...........................................................3
ESA-E Standard Express Spectrum Analyzer (STD/STG) .......6
ESA-E Communications Test Express Spectrum Analyzer
     (COM)............................................................................................8
Express Analyzer and Bundle Equivalent Options .....................9
ESA-E Accessory, Calibration, and Warranty Options ............10
ESA-E Upgrade Options ....................................................................11
Related Literature ...............................................................................12




                                                                                                          2
ESA-E Custom Configuration

   Step 1. Select your frequency range
   Description                                            ESA-E model number1                           EXA option number
   Frequency range, 9 kHz to 3.0 GHz                      E4402B                                        N9010A-503, frequency range, 10 Hz to 3.6 GHz
   Frequency range, 9 kHz to 6.7 GHz                      E4404B                                        N9010A-507, frequency range, 10 Hz to 7.0 GHz
   Frequency range, 9 kHz to 13.2 GHz                     E4405B                                        N9010A-513, frequency range, 10 Hz to 13.6 GHz
   Frequency range, 9 kHz to 26.5 GHz                     E4407B                                        N9010A-526, frequency range, 10 Hz to 26.5 GHz
                                                          Not available                                 N9010A-532, frequency range, 10 Hz to 32.0 GHz
                                                          Not available                                 N9010A-544, frequency range, 10 Hz to 44.0 GHz


   Step 2. Included options at no additional charge
   Description                                            ESA-E spectrum analyzer                       EXA signal analyzer
   GPIB connection                                        Option A4H2                                   Standard on all EXA signal analyzers; in addition, the EXA offers
                                                                                                        seven USB ports and LAN connectivity as standard.
   IntuiLink PC connectivity software                     Connects to Microsoft
