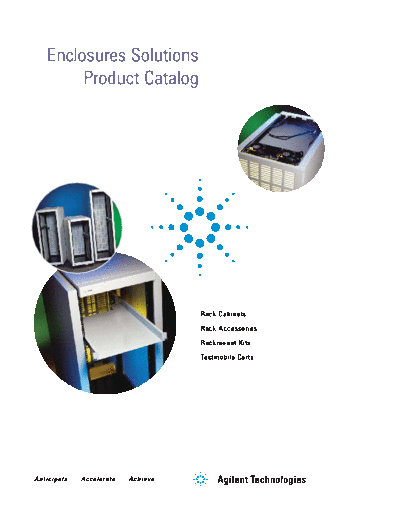

Image preview - the first page of the document
![Enclosures Solutions Product Catalog 5980-0450E c20130703 [46]](/pics/5c4d6d5e6e09b.gif)
>> Download Enclosures Solutions Product Catalog 5980-0450E c20130703 [46] documenatation <<
Text preview - extract from the document
Enclosures Solutions
Product Catalog
Rack Cabinets
Rack Accessories
Rackmount Kits
Testmobile Carts
Table of Contents
Introduction
How to Use the Agilent Enclosure Catalog 3
Ordering Guide 4
One
Rack Cabinets
Features
Standard Rack Cabinets
5
7
Four
Small Parts
Feedthrough Panels
Rack Filler Panels
35
36
Specifications 8 Power Cables 36
Rack Cabinet with Factory-installed Mounting Hardware 37
Power Distribution Units 9 Leveling Screws 38
Multi-bay Rackmount Configurations 12 Rackmount Caster 38
Configuration Guide 12 Rear Door Hinge 38
Tie Kits 12 Forehead Bezels 38
Quartz Gray Paint 38
Two
Rack Accessories
Power Distribution Units
Front Doors
12
14
Five
Testmobiles & Accessories
Features 39
Rear Doors 15 Scope Cart 40
Extractor Fans 17 System Cart 41
Drawers 18 Specifications 42
Shelves 19 Accessories 42
Work Surface 20 Printer/Plotter Stand 42
Ballast 21 Work Surface 43
Storage Drawer 44
Three
Stationary Shelf 44
Power Cables 45
Rackmount Kits
Monitor Rackmount Kits 22
Keyboard Rackmount Kits 23
Instrument Rackmount Kits 25
Instrument Compatibility with Racks 25
Handles & Rackmount Flanges 26
Rackmount Adapter Kits 29
Support Shelf, Filler Panels & Slides 30
Lock Link Kits 32
Rail Kits 33
Slide Kits 34
End Brackets 34
How to use the Agilent Enclosure Catalog
This catalog has been standardized to help you navigate the pages more easily. Every product page in the catalog includes
common features to help you quickly and easily identify the information you are seeking.
1) Product category
2) Product and description: Each product page will begin with a general description of the product and its role in the rack system.
3) Specifications: The specifications box details the key dimensions of the product, including weight and load capacity.
4) Photographed detail of product: A photograph of the product will help you visualize how that piece fits into your system.
5) Dimensional schemes
6) Shipping contents: A list of the essential materials that are shipped with products will be listed. This is a condensed
bill of materials (BOM).
7) Ordering information: This section details specific features you need to know when placing the order. This includes order
number and any important product-specific features.
8) Must read box: Many products have important information that you should note. For these products, we have included
a "Must Read" orange box that contains this important information.
1 Product category
Rack Accessories
6 Shipping contents
2 Product Drawers
Mount a drawer in the rack to keep
manuals or spare cables close to where
they are needed. Two drawer sizes are What you get in the box
available. Sliding rails and mounting Drawer with slides
hardware are included. attached
Mounting hardware
Drawer
416 mm 416 mm
521 mm 16.375 in 521 mm 16.375 in
20.5 in inside 20.5 in inside
inside inside
4 Photographed 5 Dimensions
detail of diagram
product
79.5 mm
124 mm 3.125 in
4.875 in inside
inside 483 mm
483 mm 19 in
19 in
89 mm
133 mm 3.5 in
5.25 in
35181C Drawer
Drawer installed 35181M Drawer 35181J Drawer
Specifications Ordering Information
Must Read Box
3 Part 35181J 35181M Part No. Description Height Dimensions EIA Units
Sample must read box
Specifications Material Cold-rolled steel Cold-rolled steel 35181J Storage drawer, 3.5" 89 mm (3.5 in) 2
Weight 7.26 kg (16 lbs) 8.16 kg (18 lbs) 35181M Storage drawer, 5.25" 133 mm (5.25 in) 3
Color Quartz gray Quartz gray
Length 521 mm (20.5 in) 521 mm (20.5 in)
Height 89 mm (3.5 in) 133 mm (5.25 in) 7 Order details
Width 483 mm (19 in) 483 mm (19 in) 8 Must read box
3
Ordering Guide
Ordering Guide
