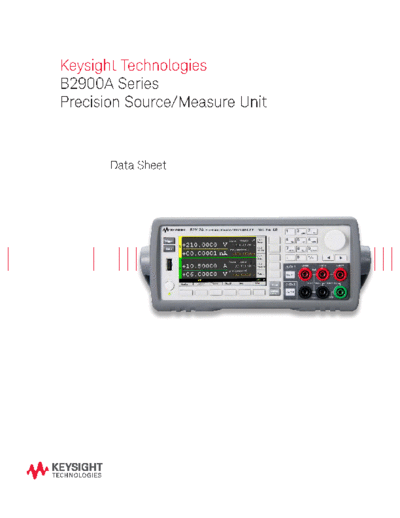

Image preview - the first page of the document
>> Download English _ 2013-04-25 _ PDF 365 KB 5990-7009EN c20141205 [18] documenatation <<Text preview - extract from the documentKeysight Technologies
B2900A Series
Precision Source/Measure Unit
Data Sheet
Introduction
The Keysight Technologies, Inc. B2900A Series of Precision Source/Measure Units are
compact and cost-effective bench-top Source/Measure Units (SMUs) with the capability
to output and measure both voltage and current. An SMU combines the capabilities of
a current source, a voltage source, a current meter and a voltage meter along with the
capability to switch easily between these various functions into a single instrument. The
Keysight B2900A series of SMUs provide best-in-class performance at a lower price than
ever before. They have broad voltage (210 V) and current (3 A DC and 10.5 A pulsed)
sourcing capability, excellent precision (minimum 10 fA/100 nV sourcing and measuring
resolution ) and high measurement throughput. They also support an arbitrary waveform
generation function. In addition, the Keysight B2900A series possess a superior graphical
user interface with various viewing modes that dramatically improve test productivity,
debug and characterization. The versatile integrated source and measurement capabilities
of the Keysight B2900 series SMUs make them an ideal choice for testing semiconductors,
active/passive components and a variety of other devices and materials. The B2900
series has a broad application range that spans from R&D and education uses to industrial
development, test and manufacturing. Moreover, they work equally well as either stand-
alone or system components. The Keysight B2900A series consists of four models, the
B2901A, B2902A, B2911A and B2912A, differentiated through their available features
(number of digits displayed, measurement resolution, minimum timing interval, supported
viewing modes, etc.) and by the number of SMU channels (one or two) they contain. This
makes it easy to select the exact price/performance point to meet your testing needs.
03 | Keysight | B2900A Series Precision Source/Measure Unit
