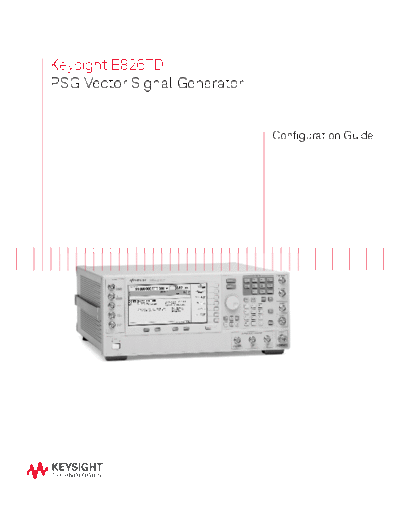

Image preview - the first page of the document
![English _ 2013-11-25 _ PDF 771 KB 5989-1326EN c20140627 [10]](/pics/5c4d6d7538154.gif)
>> Download English _ 2013-11-25 _ PDF 771 KB 5989-1326EN c20140627 [10] documenatation <<
Text preview - extract from the document
Keysight E8267D
PSG Vector Signal Generator
Configuration Guide
This guide assists in the ordering process of the E8267D PSG vector signal generator. Standard product includes instal-
lation guide, electronic documentation set (CD-ROM), adapters, and country specific power cord. High output power (Option
1EU) and step attenuator (Option 1E1) are standard features in the E8267D vector signal generator.
Keysight PSG Vector Signal Generator Options
Step 1. Choose a frequency range (required)
All frequency range options support underrange to 100 kHz. However, performance specifications are not provided between 100 kHz and 250 kHz.
Ordering number Description Purpose Requires
E8267D-520 Frequency range from 250 kHz to 20 GHz Selects the maximum frequency of the
signal generator
E8267D-532 Frequency range from 250 kHz to 31.8 GHz Selects the maximum frequency of the
signal generator
E8267D-544 Frequency range from 250 kHz to 44 GHz Selects the maximum frequency of the
signal generator
Step 2. Choose spectral purity
Ordering number Description Purpose Requires
Standard Standard spectral purity Provides low phase noise
E8267D-UNX 1 Ultra-low phase noise Improves phase noise performance
close-to-carrier
E8267D-UNY 1 Enhanced ultra-low phase noise Improves phase noise for carrier offsets
from 1 Hz to 300 kHz
E8267D-1EH Improved harmonics below 2 GHz Improves harmonic performance for carrier
frequencies below 2 GHz
Step 3. Choose modulation
Ordering number Description Purpose Requires
Standard CW signal generation, Generates continuous wave (CW)
vector (IQ) modulation capability signals and can modulate IQ waveforms
provided by the optional internal baseband
generator (Option 602) or an external
baseband source
E8267D-UNT AM, FM, phase modulation, and LF output Generates analog modulated signals
E8267D-UNU 2 Pulse modulation Generates pulse modulated signals
(150 ns minimum pulse width)
E8267D-UNW 2 Narrow pulse modulation Generates pulse modulated signals
(20 ns minimum pulse width)
Step 4. Choose ramp sweep
Ordering number Description Purpose Requires
E8267D-007 Analog ramp sweep Generates a fully synthesized ramp (analog)
sweep of frequency and amplitude
Step 5. Choose internal baseband generator
Ordering number Description Purpose Requires
E8267D-602 Internal baseband generator, Generates arbitrary and real-time I/Q
64 Msa memory waveforms (80 MHz of RF modulation
bandwidth)
E8267D-009 Removable flash memory Provides 8 GB of removable compact
flash memory; all user-accessible files are
located on this memory card
1. E8267D-UNX and E8267D-UNY are mutually exclusive; choose one or the other or neither.
2
2. Option E8267D-UNU and E8267D-UNW are mutually exclusive; choose one or the other or neither. However, option E8267D-UNU can be upgraded
to E8267D-UNW.
Step 6. Choose wideband external I/Q
Ordering number Description Purpose Requires
E8267D-016 Wideband external differential Provides up to 2 GHz RF modulation bandwidth
I/Q inputs for carrier frequency above 3.2 GHz and up to
260 MHz below 3.2 GHz; standard external I/Q
inputs provide 160 MHz RF modulation bandwidth
E8267D-H18 Wideband modulation less than 3.2 GHz Provides up to 2 GHz of modulation bandwidth E8267D-016 (recommended)
below 3.2 GHz; actual bandwidth depends on E8267D-HBQ (recommended)
what other options are installed, e.g. 016 or HBQ (China/Russia)
E8267D-HBQ Band limited wideband differential Provides greater than 300 MHz of modulation
external I/Q inputs bandwidths for carrier frequency above 3.2 GHz
and up to 260 MHz below 3.2 GHz
Step 7. Choose signal creation software for your baseband generator
Ordering number Description Purpose Requires
E8267D-403 Calibrated Noise (AWGN) generation Provides settable Eb/No and C/N E8267D-602
E8267D-409 GPS personality Create multi-satellite GPS signals for testing GPS receivers E8267D-602
E8267D-423 Scenario generator for MS-GPS Create, edit, and playback custom GPS scenario files E8267D-409, E8267D-602
personality
E8267D-SP1 Signal Studio for jitter injection Create repeatable additive calibrated jitter with E8267D-602
variable rate and deviation for tolerance measurements
N7600B Signal Studio for Create W-CDMA FDD single/multi-carrier E8267D-602
3GPP W-CDMA FDD uplink/downlink test signals at baseband and RF, for
basestations, mobile transceivers, and their components
N7601B Signal Studio for 3GPP2 CDMA Create cdma2000◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
