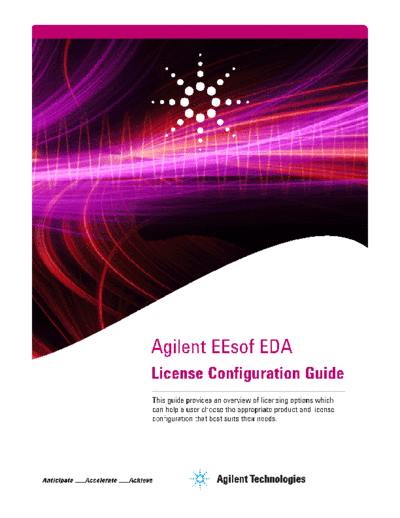

Image preview - the first page of the document



>> Download Keysight EEsof EDA License Configuration Guide 5991-1390EN [6] documenatation <<

Text preview - extract from the document

Agilent EEsof EDA
License Configuration Guide
This guide provides an overview of licensing options which
can help a user choose the appropriate product and license
configuration that best suits their needs.
License types

                     Agilent EEsof provides software products in either a floating or node locked
                     license configuration. Node locked and floating licenses are available either as
                     perpetual or time based products.




Product structure
                     Agilent EEsof product structure consists of licensed elements and bundles.
                     A bundle is a collection of licensed product element(s) designed to service a
                     user's workflow. A bundle includes a product environment (UI) and numerous
                     packaged features, and is a cost effective way of providing a broad range of
                     capabilities to a user at an attractive price. Any feature accessed in a bundle
                     will reserve the rest of the features in that bundle for the specific user.

                     An element is a collection of feature(s) designed for a specific task (e.g. a
                     harmonic balance simulator element), and is typically used to extend product
                     capability. An element reserves all features contained within it for the specific
                     user. The relationship between bundles, elements, and features is shown in the
                     figure below:




      What is sold      Bundled             =         Element           +          Element
                        Product                      Product 1                    Product 2


                         Feature A                      Feature A                    Feature D


                         Feature B                      Feature B                    Feature E
How features make
      up a product
                         Feature C                      Feature C


                         Feature D


                         Feature E




                                        2
License counting or job control

                                     All Agilent EEsof licenses are counted at the product license level. Simulators
                                     and certain models/libraries are counted job controlled features--a fixed count
                                     is assigned to the feature to regulate concurrent usage of the license. GUI
                                     features are not job controlled, and users can have multiple UI windows opened
                                     up simultaneously if they want.




Bundle and element product trade-offs

                                     The table below outlines the trade-offs between bundle only configurations and
                                     those configurations that utilize elements with bundles.



 Description                       Pros                                    Cons

 Bundle only configuration
