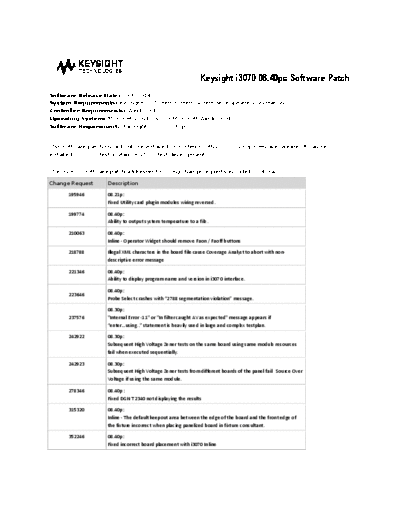

Image preview - the first page of the document



>> Download Keysight_i3070_08_5F40pc_Release_Notes Keysight i3070 08.40pc Software Patch Release Notes c20141029 [2] documenatation <<

Text preview - extract from the document

                                                                Keysight i3070 08.40pc Software Patch
Software Release Date: Oct, 2014
System Requirements: Keysight i3070 test system or test development workstation
Controller Requirements: Windows PC
Operating System: Microsoft Windows 7 or Microsoft Windows XP
Software Requirement: Keysight i3070 08.40p


This software patch should only be installed on systems with i3070 08.40p software release. It can be
installed on i3070 test system or i3070 test development.


The 08.40pc software patch addresses following change requests included 08.40sa.

Change Request       Description

      195946         08.21p:
                     Fixed Utility card plugin modules wiring reversed.

      199774         08.40p:
                     Ability to output system temperature to a file.

      210063         08.40p:
                     Inline - Operator Widget should remove Faon / Faoff buttons

      218788         Illegal XML characters in the board file cause Coverage Analyst to abort with non-
                     descriptive error message

      221346         08.40p:
                     Ability to display program name and version in i3070 interface.

                     08.40p:
      223646
                     Probe Select crashes with "2788 segmentation violation" message.

                     08.30p:
      237576         "Internal Error -11" or "In filter caught AV as expected" message appears if
                     "enter...using.." statement is heavily used in large and complex testplan.

      242922         08.30p:
                     Subsequent High Voltage Zener tests on the same board using same module resources
                     fail when executed sequentially.

      242923         08.30p:
                     Subsequent High Voltage Zener tests from different boards of the panel fail Source Over
                     Voltage if using the same module.

      278346         08.40p :
                     Fixed DGN T2340 not displaying the results

      315320         08.40p:
                     Inline - The default keepout area between the edge of the board and the front edge of
                     the fixture incorrect when placing panelized board in fixture consultant.

      352246         08.40p:
                     Fixed incorrect board placement with i3070 Inline
The software patch must be installed using the administrator login (or a login with administrator privileges).

Installing the 08.40pc software patch

Follow these steps to install the 08.40pc software patch:

    1.   Save the Keysighti3070_0840pc.exe file to your hard disk.
    2.   Close all open programs.

    3.   Double-click Keysighti3070_0840pc.exe

    4.   Follow the on-screen instructions for installation.

    5.   To validate that the software was installed correctly:

             a.   On the Start menu, select Programs > Agilent ICT > Korn Shell

             b.   In the Korn Shell window, type version and press Enter.
             The following software revision should be displayed:
             Agilent Medalist i3070 08.40pc 1113 WN.
