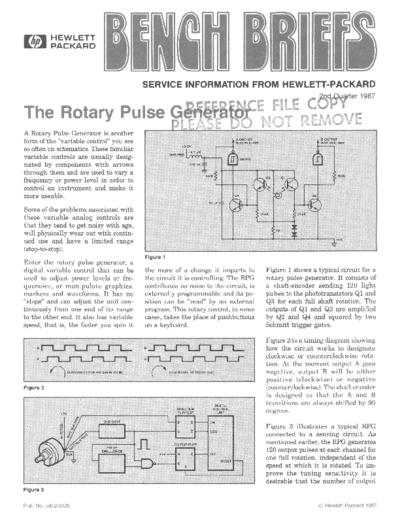

HEWLETT
PACKAR D

SERVICE INFORMATION FROM HEWLETT-PACKARD

A Rotary Pulse Generator is another
form of the "variable control" you see
so often on schematics. These familiar
variable controls are usually desig-
nated by components with arrows
through them and are used to vary a
frequency or power level in order to
control an instrument and make it
more useable.
Some of the problems associated with
these variable analog controls are
that they tend to get noisy with age,
will physically wear out with contin-
ued use and have a limited range
(stop-to-stop).
Figure 1
Enter the rotary pulse generator, a
digital variable control that can be the more of a change it imparts to Figure 1shows a typical circuit for a
used to adjust power levels or fre- the circuit it is controlling. The RPG rotary pulse generator. It consists of
quencies, or manipulate graphics, contributes no noise to the circuit, is a shaft-encoder sending 120 light
markers and waveforms. It has no externally programmable and its po- pulses to the phototransistors Q1 and
"stops" and can adjust the unit con- sition can be " r e a d by an external Q3 for each full shaft rotation. The
tinuously from one end of its range program. This rotary control, in some outputs of Q1 and Q3 are amplified
to the other end. It also has variable cases, takes the place of pushbuttons by Q2 and Q4 and squared by two
speed, that is, the faster you spin it on a keyboard. Schmitt trigger gates.

Figure %isa timing diagram showing
how the circuit works to designate
clockwise or counterclockwise rota-
tion. At the moment output A goes
negative, output B will be either
positive (clockwise) o r negative
Figure 2 (counterclockwise).The shaft encoder
is designed so that the A and B
transitions are always shifted by 90
degrees.

Figure 3 illustrates a typical RPG
connected to a sensing circuit. As
mentioned earlier, the RPG generates
120 output pulses a t each channel for
one full rotation, independent of the
speed at which it is rotated. To im-
prove the tuning sensitivity it is
desirable that the number of output
Figure 3

Pub. NO. 5952-0128 @ Hewlett-Packard 1987
pulses would be somewhat propor-
tional to the rotating speed of the
RPG. To achieve this, a "pulse swal-
lower" is connected in the circuit. At
low rotating speed the "pulse swal-
lower" suppresses two out of three
pulses, at medium speed one out of
two, and a high rotation speed the
"pulse swallower" is inactive. There-
fore, when you turn the RPG slowly,
the change it imparts to the device is
slower by two thirds of 120 pulses,
and when you spin the control as fast
as you can, the change it imparts is
at the full 120 pulses.

As shown in Figure 4, C2 and C3 are
charged according to the speed of the
RPG. At low speed it takes three Figure 4
pulses to charge C2 to a high logic
level while C3 charges only at high Q2 discharges C2 and C3. While the from the shaft rotation. Therefore,
speed. Therefore, C2 and C3 control "direction" flip-flop indicates to the the contents of the "digital control"
how many times the "go" flip-flop "digital control" unit whether it has unit (really an up-down counter) can
will be clocked during a full rotation. to count up (CW) or down (CCW),the be used instead of a digital input
Each time the "go" flip-flop is clocked, GO input counts the pulses coming from a keyboard. 0

Hardware Service Training, Investing in Sel
Wei Huang Course 50036A ($3,10O/ea) provides skills required to maintain, trouble-
HP Customer Training the participant with detailed ATS/ shoot, and repair the respective hard-
1000 operation and service knowledge. ware. The class is configured as 50
Certain aspects of the RTE-A and percent lecture and 50 percent lab so
RTE-4 controlling software will also that the student is provided an inte-
be discussed. The course is struc- grated practical learning experience.
tured as 50 percent lecture and 50 The class is schdduled to be held
percent lab. October 19 through October 30,1987. ---

Interested customers should contact For more information or registration,
their HP sales representative for reg- please contact Sue Goss at (707)
istration. For further information, 794-3587. Reference Course Number:
please contact Danny Shewey at (408) NEN4-856XX.
257-7000, ext. 3623.
Self-Paced Service Training
HP 8566/67/68 Spectrum Packages are Available
HP 1000 Automatic Test Analyzer
System Service Training Hewlett-Packard Customer Service
Signal Analysis Division at Rohnert Training is offering self-paced hard-
The Hewlett-Packard Advanced Park, CA is offering an HP8566/ ware service training packages on
Manufacturing Systems Organization 67/68 Spectrum Analyzer service various HP PC, PC peripheral, and
in Cupertino, CA is offering a 5-day, training seminar in October. The 10- instrument products.
HP 1000 Automatic Test System cus- day course ($2,85O/ea) provides stu-
tomer service training course starting dents with the fundamentals of spec- Currently, a total of 55 hardware
October 5th, 1987. trum analysis as well as the technical service training packages and 1 video
1

2 BENCH BRIEFS 2ND QUARTER
computer technology prestudies are and computer printer, and the mag- For the latest self-paced training
available. Service training packages tape fundamentals. product list, please call Customer
are available for products such as the Service Training at (415) 691-5300/
HP 72425A Vectra PC, the HP 22278 The self-paced hardware service 5905 or use our toll free numbers;
QuietJet printer, and the HP 4971A package is $300 each. The video 800-523-0696 (U.S.) or 800-882-9595
LAN Protocol Analyzer. Video pre- prestudy is $350 per set. All self- (California).
studies include the disc mass storage, paced items are orderable from HP
at (916) 786-8000 ext. 8068.

notes on the service note order form line voltage to the metal toggle han-
at the back of Bench Briefs, each dle. The safety ground wire connect-
appropriate number is highlighted ing the switch housing to the earth
by being printed in color. ground was omitted on HP 6214B
models w i t h s e r i a l n u m b e r s
Service notes from H P relating to 2629A11237 and 2629A11245.
personal safety and possible equip-
HP 3497A Data Acquisition
ment damage are of vital importance and Control Unit This problem can be corrected by
to our customers. To make you more installing H P Service Kit 5060-3256,
aware of these important notes, they Product Safety Service Note 3497A-
which consists of a solder terminal
are printed on paper with a red 23D-S is a replacement service note
that goes beneath the switch body
border, and the service note number for 3497A-23A-S, described in the
and a n 18 AWG green and yellow
has a "-$3" suffix. In order to make January-February 1986 issue of
wire to connect the solder terminal
you immediately aware of any poten- Bench Briefs.
to the ground terminal of the front
tial safety problems, we are high- panel.
lighting safety-related service notes HP 6214B DC Power Supply
here with a brief description of each For more information, please order
problem. Also, in order to draw your A shock hazard exists if the ac line Product Safety Service Note 6214B-
attention to safety-related service switch should fail shorting the ac 2-S from this issue of Bench Briefs. 0
