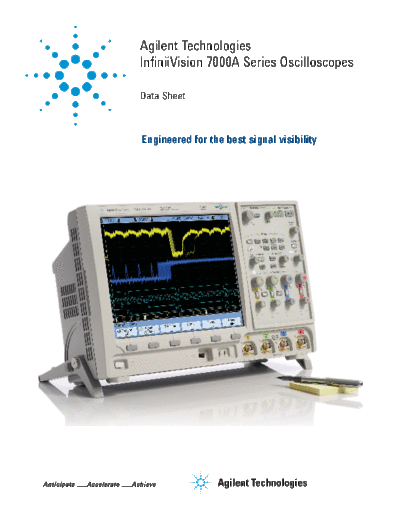

Image preview - the first page of the document



>> Download InfiniiVision 7000A Series Oscilloscopes - Data Sheet 5989-7736EN c20121203 [28] documenatation <<

Text preview - extract from the document

Agilent Technologies
InfiniiVision 7000A Series Oscilloscopes

Data Sheet


Engineered for the best signal visibility
If you haven't purchased an Agilent scope lately,                                               There is no better way to experience
                                                                                                the superiority of the InfiniiVision 7000A
why should you consider one now?                                                                Series scopes than to see it.
                                                                                                Contact Agilent today to request an
Agilent has been the fastest growing oscilloscope supplier since 1997                           evaluation.
                 Wonder why? Agilent engineers developed the InfiniiVision 7000A Series
(source: Prima Data, 2007).

with advanced technology that will allow you to see more subtle signal detail and more          Or visit:
infrequent events than any other scope on the market. See the InfiniiVision 7000A Series        www.agilent.com/find/7000A
oscilloscope--the industry's best for signal viewing.




The InfiniiVision 7000A Series offers bandwidths up to 1 GHz. Each model, equipped with a large 12.1" XGA LCD display, comes
in an whisper-quiet package that is just 6.5" deep and weighs only 13 pounds.



                                                               Scope             Digital
     Model               Bandwidth Sample rate    Memory      channels          channels                     Update rate
    DSO7012A                                                       2
    DSO7014A                                                       4
                              100 MHz   2 GSa/s   8 Mpts
    MSO7012A                                                       2
    MSO7014A                                                       4                16

    DSO7032A                                                       2
                                                                                                       Up to 100,000 deep-memory
    DSO7034A                                                       4
                              350 MHz   2 GSa/s   8 Mpts                                             waveforms per second, even with
    MSO7032A                                                       2                                  deep memory, digital channels
    MSO7034A                                                       4                16
                                                                                                       and serial decode turned on.
    DSO7052A                                                       2
    DSO7054A                                                       4
                              500 MHz   4 GSa/s   8 Mpts
    MSO7052A                                                       2                16
    MSO7054A                                                       4
    DSO7104A
    MSO7104A                   1 GHz    4 GSa/s   8 Mpts           4                16

Choose from fourteen InfiniiVision 7000A Series models. Agilent provides an easy 5-minute DSO-to-MSO upgrade kit for previously
purchased 7000A Series DSOs.



2
What gives the InfiniiVision 7000A Series the best signal visibility?

1. Biggest display
Oscilloscopes are visual tools and large, high-resolution screens make the prod-
uct better. Bigger displays have become increasingly important as general purpose
scopes need more space to display digital and serial signals in addition to traditional
scope channels.

The increased display size helps you easily view up to 20 channels simultaneously
with serial protocol. At 12.1 inches the display is nearly 40% bigger than any competi-
tive model.




2. Fastest architecture
See a display more representative of the actual signals under test than with any other
scope. The InfiniiVision 7000A Series shows jitter, infrequent events, and subtle signal
detail that other scopes miss. Turn knobs and the instrument responds instantly and
effortlessly. Need to also view digital channels? The instrument stays responsive.
Decoding serial packets? Offering the industry's only hardware-accelerated serial bus
decode, Agilent's InfiniiVision series delivers serial debug without compromising analog
measurements.




                     InfiniiVision scopes incorporate acquisition memory, waveform processing, and display memory in an advanced 0.13
