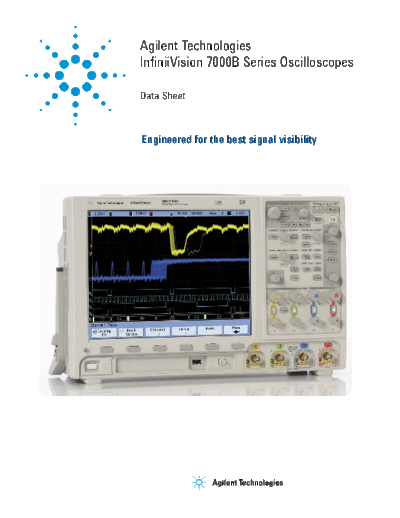

Image preview - the first page of the document



>> Download InfiniiVision 7000B Series Oscilloscopes - Data Sheet 5990-4769EN c20130606 [28] documenatation <<

Text preview - extract from the document

Agilent Technologies
InfiniiVision 7000B Series Oscilloscopes

Data Sheet


Engineered for the best signal visibility
If you haven't purchased an Agilent scope lately,                                               There is no better way to experience
                                                                                                the superiority of the InfiniiVision 7000B
why should you consider one now?                                                                Series scopes than to see it.
                                                                                                Contact Agilent today to request an
Oscilloscopes are visual tools and larger, high-resolution displays have become                 evaluation.
increasingly important as general purpose scopes need more space to display
digital and serial signals in addition to traditional scope channels.                           Or visit:
Wonder why? Agilent engineers developed the InfiniiVision 7000B Series with advanced            www.agilent.com/find/7000B
technology that will allow you to see more subtle signal detail and more infrequent events
than any other scope on the market. See the InfiniiVision 7000B Series oscilloscope.




The InfiniiVision 7000B Series offers bandwidths up to 1 GHz. Each model, equipped with a large 12.1" XGA LCD display, comes
in a whisper-quiet package that is just 6.5" deep and weighs only 13 pounds.



                                                                   Scope             Digital
    Model      Bandwidthh Sample rate             Memory          channels          channels               Update rate
 DSO7012B                                                             2
 DSO7014B                                                             4
                  100 MHz          2 GSa/s         8 Mpts
 MSO7012B                                                             2
 MSO7014B                                                             4                 16

 DSO7032B                                                             2
                                                                                                     Up to 100,000 deep-memory
 DSO7034B                                                             4
                  350 MHz          2 GSa/s         8 Mpts                                          waveforms per second, even with
 MSO7032B                                                             2                             deep memory, digital channels
 MSO7034B                                                             4                 16
                                                                                                     and serial decode turned on.
 DSO7052B                                                             2
 DSO7054B                                                             4
                  500 MHz          4 GSa/s         8 Mpts
 MSO7052B                                                             2                 16
 MSO7054B                                                             4
 DSO7104B
 MSO7104B          1 GHz           4 GSa/s         8 Mpts             4                 16

Choose from fourteen InfiniiVision 7000B Series models. Agilent provides an easy 5-minute DSO-to-MSO upgrade kit for previously
purchased 7000 Series DSOs.



2
What gives the InfiniiVision 7000B Series the best signal visibility?

1. Biggest display
Oscilloscopes are visual tools and larger, high-resolution screens make the
product better. Bigger displays have become increasingly important as general
purpose scopes need more space to display digital waveforms and serial decode
traces in addition to traditional analog waveforms.

The 12.1-inch display size helps you easily view up to 20 channels simultaneously
with serial protocol.




2. Fastest architecture
See a display more representative of the actual signals under test. The InfiniiVision
7000B Series shows jitter, infrequent events, and subtle signal detail that other scopes
miss. Turn knobs and the instrument responds instantly and effortlessly. Need to also
view digital channels? The instrument stays responsive. Decoding serial packets? Of-
fering the industry's only hardware-accelerated serial bus decode, Agilent's InfiniiVision
series delivers serial debug without compromising analog measurements.




                      InfiniiVision scopes incorporate acquisition memory, waveform processing, and display memory in an advanced 0.13
