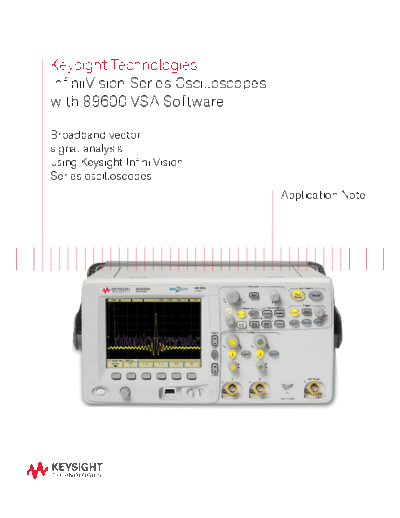

Keysight Technologies
InfiniiVision Series Oscilloscopes
with 89600 VSA Software
Broadband vector
signal analysis
using Keysight InfiniiVision
Series oscilloscopes
Application Note
This application note describes the characteristics, setup, and operation of the
Overview Keysight Technologies Inc. InfiniiVision 4000 X-Series, 3000 X-Series, 6000, and
7000 Series oscilloscopes when combined with the 89600 VSA software to provide
broadband vector signal analysis. By taking advantage of the layered architecture
and extensive digital signal processing (DSP) routines of the 89600 VSA software,
the oscilloscope becomes a new "front end" data acquisition subsystem for the
89600 VSA software. This hardware-software combination provides up to 1.5 GHz of
analysis bandwidth depending on the oscilloscope used. See Table 1 for the sup-
ported oscilloscope models and the corresponding analysis bandwidths. Appendix A
contains suggestions for wideband downconverters.
The 8-bit, high sample rate analog-to-digital converter (ADC) in the InfiniiVision
Series oscilloscopes produces the large analysis bandwidths shown in Table 1.
These bandwidths are capable of providing a spurious-free dynamic range greater
than or equal to 40 dB. This is sufficient for 1.5 to 2% error vector magnitude
measurements in most cases. For spectrum measurements with higher dynamic
range, a traditional spectrum analyzer should be used.
Table 1. InfiniiVision Series oscilloscopes supported by 89600 VSA software
Model Analysis Max. Main time
Try before you buy! bandwidth sample rate memory option
Download the 89600
1
610x/710x 0 to 1.0 GHz 4 GSa/s 1M (2M, 8M options)
software and use it free 605x/705x 0 to 500 MHz 2 GSa/s 1M (2M, 8M options)
for 14 days to make
2
603x 0 to 300 MHz 1 GSa/s 1M (2M, 8M options)
measurements with
2
703x 0 to 350 MHz 1 GSa/s 8 Mpts standard
your analysis hardware, 701x 0 to 100 MHz 400 MSa/s 8 Mpts standard
or use our recorded 601x 0 to 100 MHz 500 MSa/s 1M (2M option)
demo signals by select- 601x 0 to 100 MHz 400 MSa/s 8 Mpts (option)
ing File> Recall> 305x 0 to 500 MHz 4 GSa/s3 2M (4M option)
Recall Demo> QPSK> 303x 0 to 350 MHz 4 GSa/s3 2M (4M option)
on the software toolbar. 3024 0 to 200 MHz 4 GSa/s3 2M (4M option)
Request your free trial 301x 0 to 100 MHz 4 GSa/s3 2M (4M option)
license today: 310x 0 to 1.0 GHz 5 GSa/s 2M (4M option)
www.keysight.com/ 41544 0 to 1.5 GHz 5 GSa/s 4M
find/89600_trial. 4104 0 to 1.0 GHz 5 GSa/s5 4M
405x 0 to 500 MHz 5 GSa/s5 4M
403x 0 to 350 MHz 5 GSa/s5 4M
402x 0 to 200 MHz 5 GSa/s5 4M
89600 VSA software The 89600 VSA vector signal analysis software is the heart of the broadband VSA and
oscilloscope combination, providing flexible tools for analyzing and demodulating even
1. 781.25 MHz bandwidth and 2 Gsa/s when the most advanced digital modulations, including those not defined by an established
using adjacent channels (full channel mode).
standard.
2. 2 Gsa/s with 8 M option using non-adjacent
channels (half-channel mode).
3. 2 GSa/s when using adjacent channels
The 89600 VSA makes measurements on signals in the time and frequency domains using
(full channel mode). either the baseband or IF Zoom mode. In baseband mode, the analysis frequency range is
4. 1.0 GHz bandwidth and 2.5 GSa/s when from 0 Hz to the stop frequency. In IF Zoom mode, the analysis frequency range is defined by
using adjacent channels (full channel mode). center frequency and span. There is also an I+jQ mode for analyzing two baseband quadrature
5. 2.5 GSa/s when using adjacent channels channels. Results for any mode can be displayed as magnitude or phase, in I/Q and several
(full channel mode).
other formats. For supported 4-channel InfiniiVision oscilloscope models, the 89600 software
provides up to four channels of vector signal analysis, or dual I+jQ capability.
2
89600 VSA software With optional digital demodulation analysis, Option AYA, modulation quality
measurements in the form of error vector magnitude (EVM) can be made on
continued digital wireless communications signals with bandwidths of hundreds of MHz. In
addition, powerful diagnosis capabilities allow you to determine the exact impair-
ments that cause a digitally modulated signal to fail quality standards.
The InfiniiVision Series supports baseband signal analysis up to the maximum
bandwidth supported for MIMO applications.
