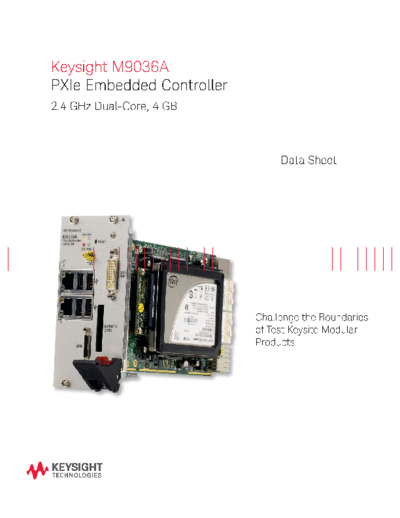

Image preview - the first page of the document



>> Download M9036A PXIe Embedded Controller - Data Sheet 5990-8465EN c20140829 [8] documenatation <<

Text preview - extract from the document

Keysight M9036A
PXIe Embedded Controller
2.4 GHz Dual-Core, 4 GB



                                Data Sheet




                           Challenge the Boundaries
                           of Test Keysite Modular
                           Products
Introduction

     Overview
     The Keysight Technologies, Inc. M9036A is an embedded PXIe PC controller which enables a compact
     platform solution. With the 2-link, 2x8 Gen 2 backplane coniguration, it is an ideal match for the Keysight
     M9018A PXIe chassis.


     Product description
     The Keysight M9036A is a three-slot module that can be used to build compact PXIe systems. It easily
     integrates into hybrid test systems using GPIB, USB, and LAN with the built-in front panel interfaces.

     The embedded controller is built upon a mid-performance Intel Core i5 dual-core processor with Hyper-
     Threading Technology and is designed for applications in multi-tasking environments.


     Applications
