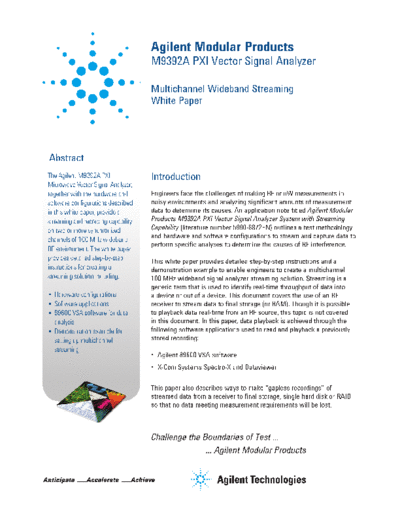

Image preview - the first page of the document



>> Download M9392A PXI Vector Signal Analyzer - Multichannel Wideband Streaming - White Paper 5991-0221EN c20121113 [49] documenatation <<

Text preview - extract from the document

                                     Agilent Modular Products
                                     M9392A PXI Vector Signal Analyzer

                                     Multichannel Wideband Streaming
                                     White Paper




Abstract
The Agilent M9392A PXI               Introduction
Microwave Vector Signal Analyzer,
together with the hardware and       Engineers face the challenges of making RF or uW measurements in
software configurations described    noisy environments and analyzing significant amounts of measurement
in this white paper, provide a       data to determine its causes. An application note titled Agilent Modular
streaming and recording capability   Products M9392A PXI Vector Signal Analyzer System with Streaming
on two or more synchronized          Capability (literature number 5990-8872EN) outlines a test methodology
                                     and hardware and software configurations to stream and capture data to
channels of 100 MHz wideband
                                     perform specific analyses to determine the causes of RF interference.
RF environment. The white paper
provides detailed step-by-step       This white paper provides detailed step-by-step instructions and a
instructions for creating a          demonstration example to enable engineers to create a multichannel
streaming solution including:        100 MHz wideband signal analyzer streaming solution. Streaming is a
                                     generic term that is used to identify real-time throughput of data into
 Hardware configurations             a device or out of a device. This document covers the use of an RF
 Software applications               receiver to stream data to final storage (or RAM). Though it is possible
 89600 VSA software for data         to playback data real-time from an RF source, this topic is not covered
 analysis                            in this document. In this paper, data playback is achieved through the
 Demonstration example for           following software applications used to read and playback a previously
 setting up multichannel             stored recording:
 streaming
