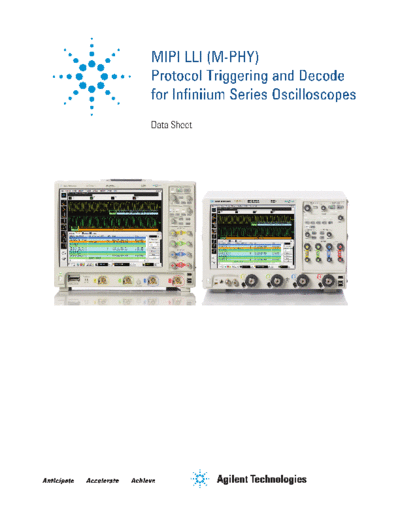

MIPI LLI (M-PHY) Protocol Triggering and Decode for Infiniium Series Oscilloscopes 5991-1533EN c20140520 [8]


>> Download MIPI LLI (M-PHY) Protocol Triggering and Decode for Infiniium Series Oscilloscopes 5991-1533EN c20140520 [8] documenatation <<

Text preview - extract from the document
MIPI LLI (M-PHY)
Protocol Triggering and Decode
for Infiniium Series Oscilloscopes
Data Sheet
MIPI LLI (M-PHY)

MIPI (Mobile Industry Processor Interface) serial buses are the backbone for communication in mobile products. The serial
bus interface provides content-rich points for debug and test. However, since these protocols transfer bits serially, using
a traditional oscilloscope has limitations. Manually converting captured 1's and 0's to protocol requires significant effort,
can't be done in real-time, and includes potential for human error. In addition, traditional scope triggers are not sufficient
for specifying protocol-level conditions.



Extend your scope capability with Agilent's MIPI Low               The following are the MIPI LLI protocols and
Latency Interface (LLI) triggering and decode application.         features that will be supported by the application.
This application makes it easy to debug and test designs
that include MIPI LLI buses using your Infiniium Series             1. Supports LLI v1.0 decode and triggering
oscilloscope.
                                                                    2. Decodes high-speed (HS-BURST) and low-speed
                                                                       Pulse Width Modulation (PWM-BURST) modes
