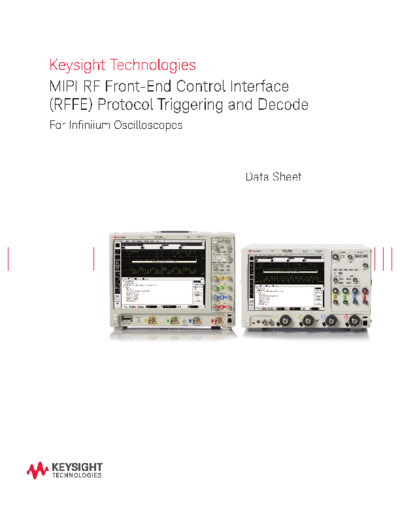

Image preview - the first page of the document
MIPI RF Front-End Control Interface (RFFE) Protocol Triggering and Decode - Data sheet 5991-2088EN c20140913 [9]


>> Download MIPI RF Front-End Control Interface (RFFE) Protocol Triggering and Decode - Data sheet 5991-2088EN c20140913 [9] documenatation <<

Text preview - extract from the document
Keysight Technologies
MIPI RF Front-End Control Interface
(RFFE) Protocol Triggering and Decode
For Infiniium Oscilloscopes



                              Data Sheet
02 | Keysight | MIPI RF Front-End Control Interface (RFFE) Protocol Triggering and Decode - Data Sheet



MIPI RFFE
The MIPI Alliance Specification for RF Front-End Control Interface (RFFE) was developed
to offer a common and widespread method for controlling RF front-end devices. Since
this protocol transfers bits serially, using a traditional oscilloscope has limitations.
Manually converting captured 1's and 0's to protocol requires significant effort, cannot
be done in real-time, and includes potential for human error. In addition, traditional scope
triggers are not sufficient for specifying protocol-level conditions.

Extend your oscilloscope capability with the Keysight Technologies, Inc. MIPI RFFE
(M-PHY) triggering and decode application. This application makes it easy to debug and
test designs that include MIPI RFFE buses using your Infiniium Series oscilloscope.
